RZ1-K Green Hose 3x1.5mm² 100M Halogen Free 0.6/1kV
Modelo: RZ1-K Verde 3x1.5mm² 100M- Sku: REVICAB031
- Vendor: Revi
Specifications
Product Description

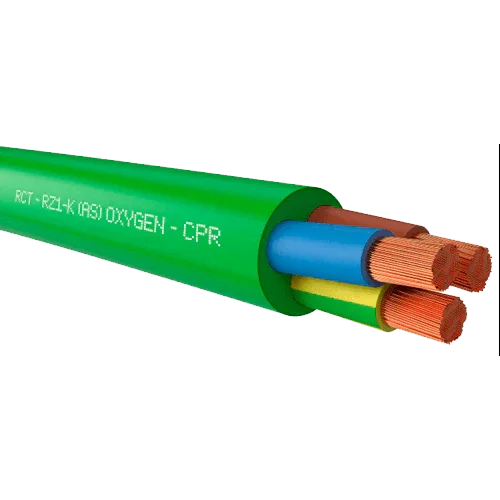

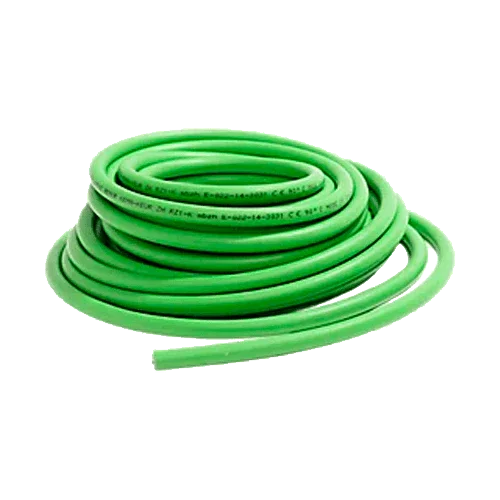

The RZ1-K Green Hose 3x1.5mm² 100M Halogen-Free 0.6/1kV is a flexible multipolar cable designed for low voltage distribution and control circuits where CPR performance and ease of installation are required. With three class 5 copper conductors of 1.5 mm², XLPE insulation, and a LSZH halogen-free sheath, it provides fire safety (low smoke opacity and toxicity) and excellent thermal performance at 90 °C. Supplied in a 100 m roll, it is a practical format for new construction, renovations, and maintenance in homes, offices, commercial premises, industry, and photovoltaic plant balance of system (AC).
Main Features
- Rated voltage: 0.6/1 kV; test voltage: 3.5 kV.
- Conductors: 3 × 1.5 mm² class 5 copper (flexible).
- Insulation: XLPE 90 °C; LSZH halogen-free sheath.
- Fire reaction certification: CPR Cca-s1b,d1,a1.
- Indoor, outdoor, tray, conduit, or buried application according to UNE 21123-4.
- Excellent handling and small bending radii for quick installations.
Advantages or Benefits
- Building safety: very low smoke opacity and zero halogen emission.
- Reliability and extended service life thanks to XLPE insulation at 90 °C.
- Productivity: 100 m roll reduces splices and assembly time.
- Versatility: suitable for lighting, sockets, control, and general services in LV.
- Compatibility with standard REBT fittings and conduits.
Purpose or Applications
Lighting and power circuits in residential and tertiary buildings, distribution and control in industrial facilities, auxiliary AC lines in solar plants, wiring in trays, corrugated conduits, or trenches when CPR Cca is required by regulations.
Technical Specifications
| Designation | RZ1-K (AS) · XLPE/LSZH |
| Number of conductors | 3 |
| Cross-section | 3 × 1.5 mm² |
| Conductor material | Class 5 copper (flexible) |
| Rated voltage | 0.6/1 kV |
| Test voltage | 3.5 kV |
| Service temperature | −15…+90 °C (250 °C/5 s in short circuit) |
| Fire reaction (CPR) | Cca-s1b,d1,a1 |
| Insulation | XLPE (90 °C) |
| Sheath | LSZH halogen-free |
| Sheath color | Green |
| Presentation | Sold by the meter (custom length) |
Compatibilities
Compatible with metric cable glands, ferrules, and terminals for 1.5 mm², as well as with standardized conduits in tray, tube, or trench. Size protections and cross-section according to REBT and voltage drop calculations.
The RZ1-K Green Hose 3x1.5mm² 100M Halogen-Free 0.6/1kV combines CPR safety, manageability, and a professional format for reliable and durable low voltage wiring.
