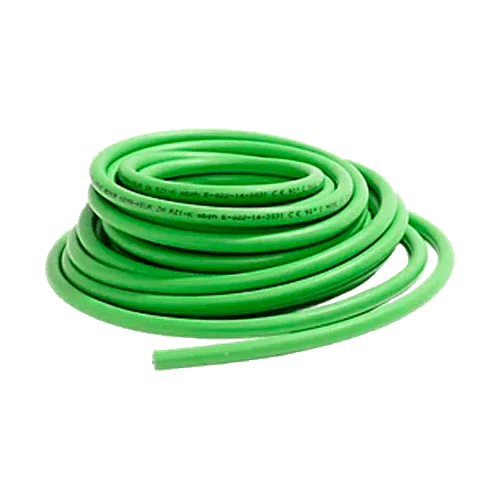

RZ1-K Green Hose 3x10mm² Halogen-Free 0.6/1kV
Modelo: RZ1-K Verde 3x10mm²- Sku: REVICAB033
- Vendor: Revi
Specifications
Product Description

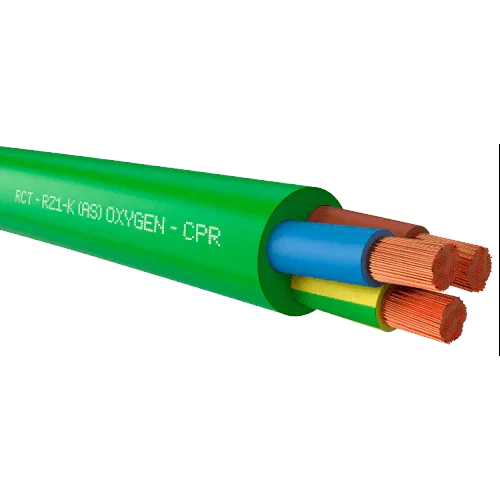

The RZ1-K Green Hose 3x10mm² Halogen-Free 0.6/1kV is a flexible multipolar cable with a large cross-section for high-demand power supply and branch circuits in low voltage. It is designed for building, industry, and photovoltaic plant balance of system (AC side), where maximum safety and minimal voltage drop are required. Its RZ1-K (AS) construction integrates class 5 copper conductors for agile installation, XLPE insulation rated for 90 °C service, and a LSZH halogen-free sheath with very low smoke opacity and toxicity. The CPR Cca-s1b,d1,a1 classification allows its use in public spaces and demanding civil works. It is supplied by the meter to precisely match the required cable length.
Main Features
- Rated voltage 0.6/1 kV; test voltage 3.5 kV.
- Conductors: 3 × 10 mm² class 5 copper (high flexibility).
- Insulation XLPE (90 °C) and LSZH halogen-free sheath.
- Versatile installation: indoor, outdoor, tray, conduit, or buried.
- Sold by the meter to optimize costs and avoid splices.
Advantages or Benefits
- Reduced voltage drop compared to smaller cross-sections over medium/long runs.
- CPR safety with low smoke emission and halogen-free.
- Ease of handling and favorable bending radii due to class 5 conductor.
- Thermal and mechanical durability inherent to XLPE in continuous service at 90 °C.
- Flexible supply thanks to sale by the meter.
Purpose or Applications
Main risers and power feeds, branch circuits to panels, service entries, and internal low voltage networks. In photovoltaics, ideal for AC distribution (from inverters to panels/CT) when a larger cross-section is required due to current or distance.
Technical Specifications
| Designation | RZ1-K (AS) · XLPE/LSZH |
| No. of conductors | 3 |
| Cross-section | 3 × 10 mm² |
| Conductor material | Class 5 copper (flexible) |
| Conductor resistance (20 °C) | ≈ 1.91 Ω/km per conductor |
| Rated voltage | 0.6/1 kV |
| Test voltage | 3.5 kV |
| Service temperature | −15…+90 °C (250 °C/5 s in short circuit) |
| Reaction to fire (CPR) | Cca-s1b,d1,a1 |
| Standard | UNE 21123-4 |
| Sheath color | Green |
| Presentation | Sold by the meter |
Compatibilities
Accepts terminals and ferrules for 10 mm², metric cable glands, and standard conduits. Select protection devices and cross-section according to REBT, permissible currents, and voltage drop calculation.
The RZ1-K Green Hose 3x10mm² Halogen-Free 0.6/1kV offers CPR safety, high current capacity, and custom supply for low voltage power lines.
