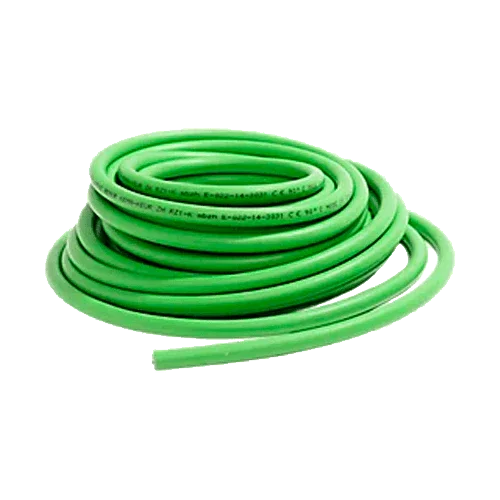

RZ1-K Green Hose 3x16mm² Halogen Free 0.6/1kV

Product Description

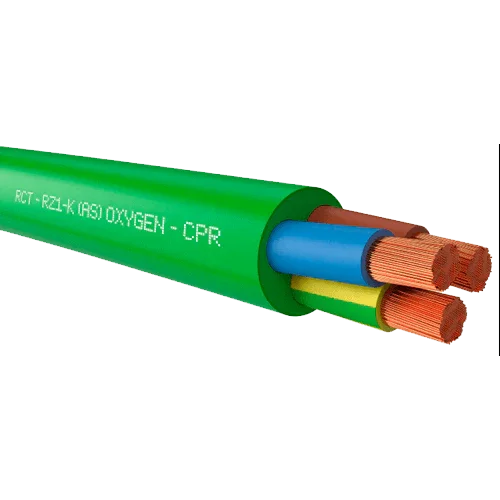

The RZ1-K Green Hose 3x16mm² Halogen-Free 0.6/1kV is a flexible multipolar cable with a large cross-section designed for high-demand power supplies and branches in low voltage. Its RZ1-K (AS) construction combines three class 5 electrolytic copper conductors—which facilitate routing and bending in trays or conduits—with XLPE (cross-linked polyethylene) insulation and a LSZH halogen-free sheath, with very low smoke opacity and toxicity. With a fire reaction classification of CPR Cca-s1b,d1,a1, it is ideal for public buildings, civil works, industry, and photovoltaic plant balance of system (AC side). It is supplied by the meter to adjust the exact length of the installation, optimizing costs and reducing splices.

Main Features

• Rated voltage: 0.6/1 kV; test voltage: 3.5 kV.
• Conductors: 3 × 16 mm² class 5 copper (high flexibility).
• Insulation: XLPE for continuous service at 90 °C and excellent dielectric strength.
• Sheath: LSZH (halogen-free), low emission of smoke and corrosive gases.
• Certification: CPR Cca-s1b,d1,a1 for applications with safety requirements.
• Installation: indoor, outdoor, in tray, conduit, or buried.

Advantages or Benefits

• Minimal voltage drop compared to smaller cross-sections, ideal for long runs or concentrated loads.
• Superior safety: low opacity/toxicity smoke and zero halogen emission.
• Long service life due to the thermal and mechanical stability of XLPE in continuous service at 90 °C.
• Outstanding manageability thanks to class 5 conductors and favorable bending radii.
• Versatility in building, industry, and solar installations (AC distribution, panels, and connections).

Purpose or Applications

Main power supplies and branches for main panels, riser columns, connections from transformer stations, internal networks of buildings and warehouses, and AC distribution in solar plants (from inverters to panels/transformer center). Suitable for installation in tray, corrugated conduit, buried duct, or outdoors, complying with REBT and ITC-BT.

Technical Specifications

Compatibilities

Accepts 16 mm² ferrules/terminals, metric cable glands, and standard conduits (tube, tray, trench). Size protections and cross-section according to REBT/ITC-BT, admissible currents, and voltage drop calculation.

The RZ1-K Green Hose 3x16mm² Halogen-Free 0.6/1kV combines CPR safety, high current capacity, and custom supply for reliable and durable low voltage cabling.
