RZ1-K Green Hose 3x2.5mm² 50M Halogen Free 0.6/1kV

Product Description

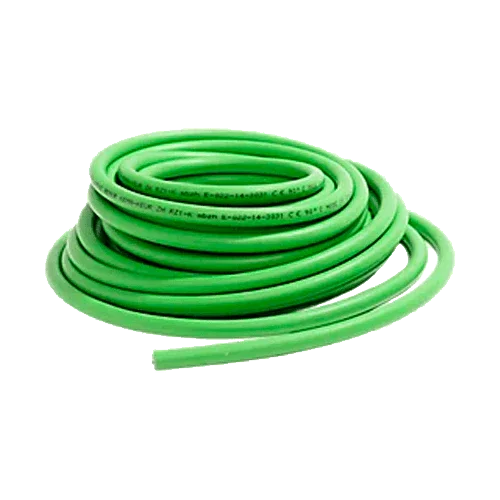

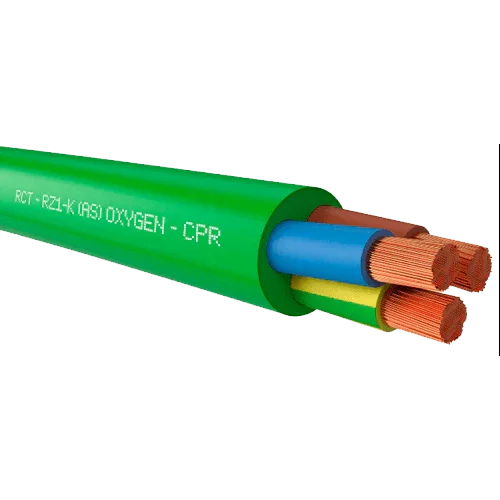

The RZ1-K Green Hose 3x2.5mm² 50M Halogen-Free 0.6/1kV is a flexible multipolar cable for distribution circuits and general services in low voltage. Its RZ1-K (AS) construction combines class 5 copper conductors with XLPE insulation (90 °C) and a halogen-free LSZH sheath, achieving very low smoke opacity and toxicity in case of fire. It complies with CPR Cca-s1b,d1,a1, making it suitable for public buildings, special buildings, industry, and photovoltaic plant balance of system (AC side). The 50 m roll format reduces splices and speeds up on-site installation.

Main Features

• Rated voltage 0.6/1 kV and test voltage 3.5 kV.
• Conductors: 3 × 2.5 mm² class 5 copper (high flexibility).
• XLPE insulation (90 °C continuous; 250 °C/5 s in short circuit).
• Halogen-free LSZH sheath, low smoke emission.
• Fire reaction classification: CPR Cca-s1b,d1,a1.
• Installation: indoor, outdoor, on tray, in conduit, or buried duct.

Advantages or Benefits

• CPR safety in buildings and civil works, with low opacity and acidity smoke.
• Agile installation thanks to its great flexibility and favorable bending radii.
• Efficiency in 2.5 mm² for power circuits, sockets, and lighting.
• Thermal and mechanical durability due to XLPE insulation.
• 50 m roll: fewer splices, greater reliability of the wiring.

Purpose or Applications

Lighting and power circuits in residential and tertiary buildings, distribution and control in industrial facilities, auxiliary AC lines in solar installations. Suitable for tray, corrugated conduit, or trench according to REBT/ITC-BT.

Technical Specifications

Compatibilities

Compatible with metric cable glands and terminals for 2.5 mm²; suitable for standardized conduits (tube, tray, trench). Size protections and section according to REBT and admissible currents.

The RZ1-K Green Hose 3x2.5mm² 50M Halogen-Free 0.6/1kV combines CPR safety, flexibility, and a practical format for reliable and durable LV wiring.
