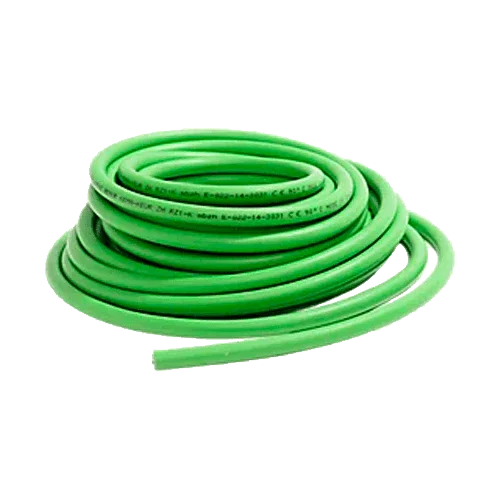

RZ1-K Green Hose 3x6mm² Halogen Free 0.6/1kV
Modelo: RZ1-K Verde 3x6mm²- Sku: REVICAB038
- Vendor: Revi
Specifications
Product Description

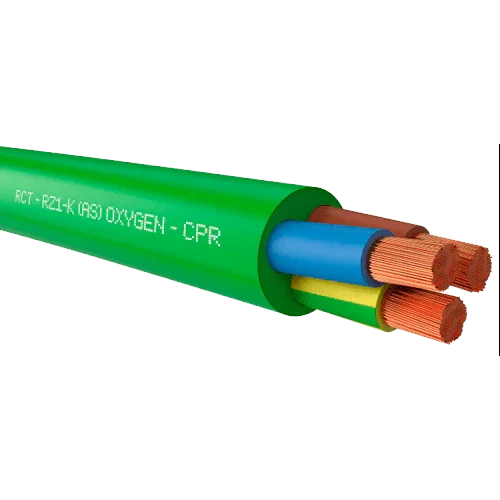

The RZ1-K Green Hose 3x6mm² Halogen-Free 0.6/1kV is a flexible multipolar cable designed for low voltage power supply and distribution where safety, durability, and ease of installation are priorities. Its RZ1-K (AS) design combines three class 5 electrolytic copper conductors, XLPE insulation that allows continuous service at 90 °C, and a LSZH halogen-free sheath with very low smoke opacity and toxicity in case of fire. It meets the demanding fire reaction standard CPR Cca-s1b,d1,a1, making it ideal for public buildings, civil works, industry, and photovoltaic plant balance of system on the AC side. It is supplied by the meter, so you can adjust the exact length of the run and avoid unnecessary splices.
Main Features
- Rated voltage 0.6/1 kV and test voltage 3.5 kV for low voltage networks.
- Three class 5 copper conductors (high flexibility) with 3×6 mm² cross-section.
- XLPE insulation (90 °C in service; 250 °C/5 s in short circuit).
- LSZH halogen-free sheath: low emission of smoke and corrosive gases.
- Fire reaction classification CPR Cca-s1b,d1,a1.
- Versatile installation: indoor, outdoor, in tray, conduit, or buried duct.
Advantages or Benefits
- Advanced safety in buildings and high-traffic areas: low opacity/toxicity smoke and halogen-free.
- Lower voltage drop compared to smaller cross-sections thanks to 6 mm² per conductor.
- Quick installation due to the flexibility of class 5 copper and favorable bending radii.
- Thermal and mechanical durability of XLPE, stable at 90 °C in continuous service.
- Cost optimization as it is sold by the meter, avoiding waste and splices.
Purpose or Applications
The 3×6 mm² hose is suitable for power and distribution circuits in homes, commercial buildings, and industrial warehouses; supply to sectional panels; service lines in parking lots; and, in photovoltaics, for AC distribution between inverters and panels, or between panels and the transformer station when the runs and currents require this cross-section. Suitable for installation in tray, corrugated conduit, or trench, in compliance with REBT and ITC-BT.
Technical Specifications
| Designation | RZ1-K (AS) · XLPE/LSZH |
| Manufacturing standard | UNE 21123-4 |
| No. of conductors | 3 (without protective conductor) |
| Cross-section | 3 × 6 mm² |
| Conductor material | Class 5 copper (flexible) |
| Conductor resistance (20 °C) | ≈ 3.30 Ω/km per conductor |
| Rated voltage | 0.6/1 kV |
| Test voltage | 3.5 kV |
| Service temperature | −15…+90 °C (250 °C/5 s in short circuit) |
| Fire reaction (CPR) | Cca-s1b,d1,a1 |
| Insulation | XLPE (90 °C) |
| Sheath | Halogen-free LSZH |
| Sheath color | Green |
| Presentation | Sold by the meter |
Compatibilities
Compatible with 6 mm² ferrules/terminals, metric cable glands, and standard conduits (pipe, tray, trench). Size protections, admissible current, and voltage drop according to REBT/ITC-BT and installation conditions.
The RZ1-K Green Hose 3x6mm² Halogen-Free 0.6/1kV combines CPR safety, flexibility, and resistance for reliable and durable low voltage wiring in residential, commercial, industrial, and solar applications.
