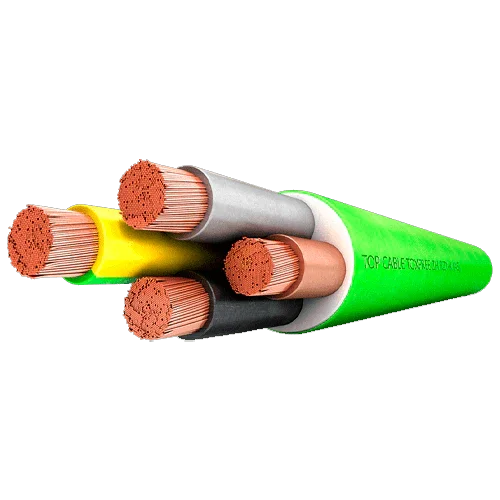

RZ1-K Green Hose 4x1.5mm² 100M Halogen Free 0.6/1kV

Product Description

The RZ1-K Green Hose 4x1.5mm² 100M Halogen-Free 0.6/1kV is a flexible multipolar cable designed for low voltage distribution and control where safety, reliability, and quick installation are required. Its four class 5 electrolytic copper conductors provide great flexibility and favorable bending radii; the XLPE insulation ensures thermal stability at 90 °C and the LSZH halogen-free sheath drastically reduces smoke opacity and toxicity in case of fire. With CPR Cca-s1b,d1,a1 certification, it is suitable for residential buildings, offices, public spaces, industry, and photovoltaic plant balance of system on the AC side. The 100 m roll format allows for continuous runs with fewer splices, optimizing installation time and costs.

Main Features

• Rated voltage 0.6/1 kV and test voltage 3.5 kV.
• Four class 5 copper conductors (high flexibility), cross-section 4×1.5 mm².
• XLPE insulation (90 °C in service; 250 °C/5 s in short circuit).
• LSZH halogen-free sheath: low smoke emission and corrosivity.
• Fire reaction CPR Cca-s1b,d1,a1 for safety-demanding environments.
• Installation indoors, outdoors, on tray, in conduit, or buried duct.

Advantages or Benefits

• Safety in buildings and civil works: low opacity and toxicity smoke, halogen-free.
• Productivity on site: 100 m roll reduces splices and failure points.
• Superior manageability due to class 5 conductor and optimized diameter.
• Versatility for lighting, sockets, control, switching, and auxiliary AC in PV.
• Thermal and mechanical durability of XLPE in continuous service at 90 °C.

Purpose or Applications

Ideal for lighting and power circuits in residential and commercial buildings, distribution and control in industrial facilities, general and auxiliary service lines in photovoltaic installations (AC), as well as wiring in cable trays, corrugated conduits, exposed ducts, or trenches, in compliance with current regulations (REBT/ITC-BT).

Technical Specifications

Compatibilities

Compatible with cable glands and terminals for 1.5 mm², as well as with standardized conduits (tube, tray, trench). Select protections and cross-section according to REBT, admissible currents, and voltage drop calculation.

The RZ1-K Green Hose 4x1.5mm² 100M Halogen-Free 0.6/1kV combines CPR safety, manageability, and professional format for reliable, organized, and durable low voltage wiring.
