RZ1-K Green Hose 4x10mm² Halogen Free 0.6/1kV

Product Description

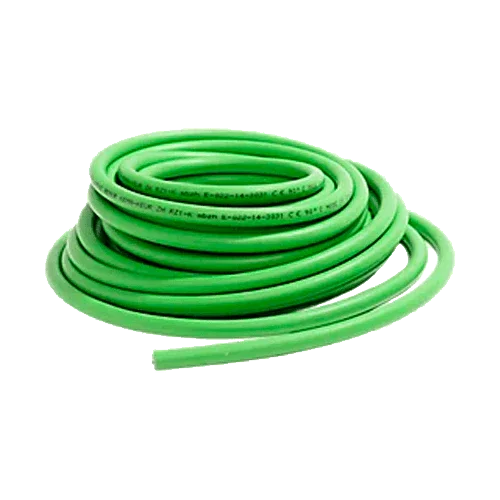

The RZ1-K Green Hose 4x10mm² Halogen-Free 0.6/1kV is a flexible multipolar cable designed for low voltage power and control lines. With four class 5 copper conductors, XLPE insulation, and LSZH halogen-free sheath, it offers fire safety (low smoke opacity and toxicity) and high thermal durability at 90 °C. Its CPR Cca-s1b,d1,a1 classification makes it suitable for public buildings, industry, and photovoltaic plant balance of system (AC side). It is supplied by the meter to optimize costs and reduce splicing.

Main Features

• Rated voltage: 0.6/1 kV; test voltage: 3.5 kV.

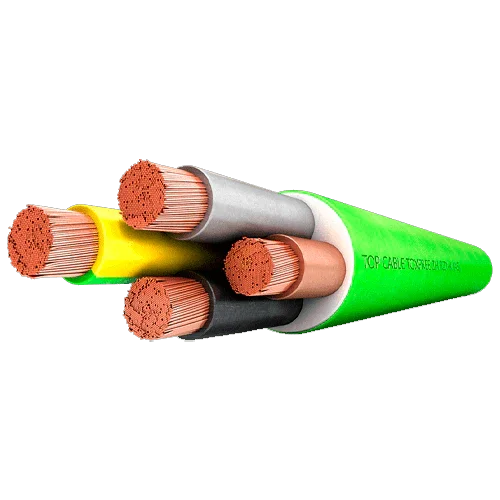

• Conductors: 4 × 10 mm² class 5 copper (high flexibility).
• XLPE insulation (90 °C in service; 250 °C/5 s in short circuit).
• LSZH halogen-free sheath, low smoke emission.
• Fire reaction: CPR Cca-s1b,d1,a1 for maximum safety.
• Installation: indoor, outdoor, tray, conduit, or buried.

Advantages or Benefits

• Lower voltage drop over medium/long runs compared to smaller cross-sections.
• Great manageability due to class 5 conductor and favorable bending radii.
• Evacuation safety: low opacity, halogen-free smoke.
• Prolonged service life thanks to XLPE insulation.
• Custom supply: sold by the meter to fit the project.

Purpose or Applications

Risers, main and branch feeds to panels, service lines in buildings and industry, and AC distribution in solar plants (from inverters to panels/CT) when a larger cross-section is required due to current or distance.

Technical Specifications

Compatibilities

Accepts ferrules/terminals for 10 mm², metric cable glands, and standard conduits (tube, tray, trench). Size protections and cross-section according to REBT/ITC-BT, admissible currents, and voltage drop.

The RZ1-K Green Hose 4x10mm² Halogen-Free 0.6/1kV provides CPR safety, current capacity, and custom supply for reliable and durable low voltage wiring.
