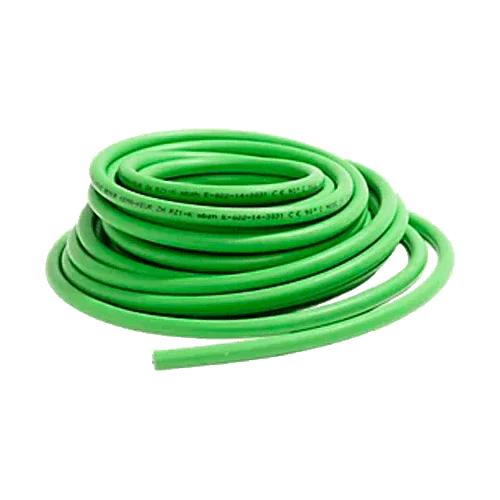

RZ1-K Green Hose 4x16mm² Halogen Free 0.6/1kV

Product Description

The RZ1-K Green Hose 4x16mm² Halogen-Free 0.6/1kV is a flexible multipolar cable with a large cross-section for power supply and branch circuits with high currents in low voltage. It integrates four class 5 copper conductors that facilitate installation, XLPE insulation for continuous service at 90 °C, and a halogen-free LSZH sheath, minimizing smoke opacity and toxicity. With CPR Cca-s1b,d1,a1, it meets safety requirements for public buildings, industry, and infrastructure, as well as photovoltaic plant balance of system (AC side). It is offered by the meter to precisely match the required cable length.

Main Features

• Rated voltage 0.6/1 kV; test voltage 3.5 kV.

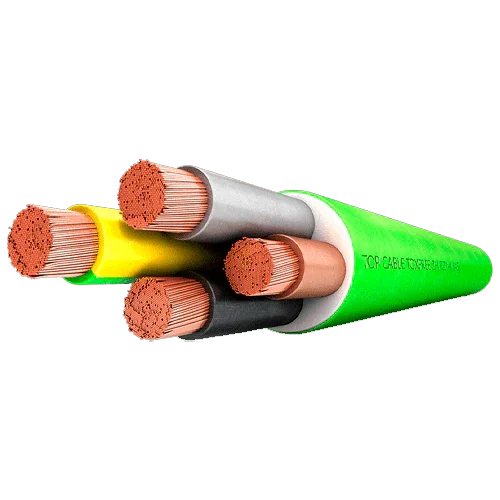

• Conductors: 4 × 16 mm² class 5 copper (high flexibility).
• XLPE insulation (90 °C) and halogen-free LSZH sheath.
• Fire reaction: CPR Cca-s1b,d1,a1.
• Indoor, outdoor, tray, conduit, or buried installation.

Advantages or Benefits

• Minimal voltage drop and excellent current capacity for long runs.
• Enhanced safety: low smoke opacity/toxicity and zero halogen emission.
• Superior manageability compared to rigid conductors thanks to class 5.
• Thermal and mechanical durability due to XLPE insulation.
• Supply flexibility as it is sold by the meter.

Purpose or Applications

Risers, main and plant panel feeds, connections from transformer stations, low voltage internal networks, and AC distribution in solar plants (from inverters to panels/transformer stations) when currents or distances require 16 mm² per conductor.

Technical Specifications

Compatibilities

Accepts ferrules/terminals for 16 mm², metric cable glands, and standard conduits. Size protections and cross-section according to REBT/ITC-BT, admissible currents, and voltage drop calculation.

The RZ1-K Green Hose 4x16mm² Halogen-Free 0.6/1kV combines CPR safety, high current capacity, and custom supply for robust and durable low voltage cabling.
