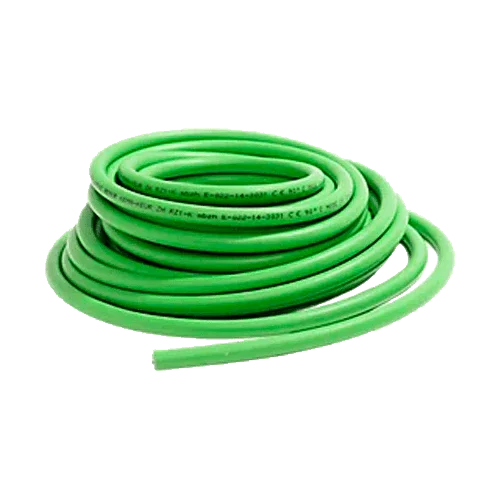

RZ1-K Green Hose 4x4mm² Halogen Free 0.6/1kV

Product Description

The RZ1-K Green Hose 4x4mm² Halogen-Free 0.6/1kV is a flexible multipolar cable for low voltage distribution and control circuits with high safety requirements. It integrates four class 5 copper conductors that facilitate installation in conduit and tray, XLPE insulation for continuous service at 90 °C, and a LSZH halogen-free sheath with very low smoke opacity and toxicity. With CPR Cca-s1b,d1,a1 classification, it is suitable for residential, tertiary, industrial, and photovoltaic plant balance of system (AC side). Supplied by the meter to precisely adjust the installation length and minimize splices.

Main Features

• Rated voltage 0.6/1 kV; test voltage 3.5 kV.

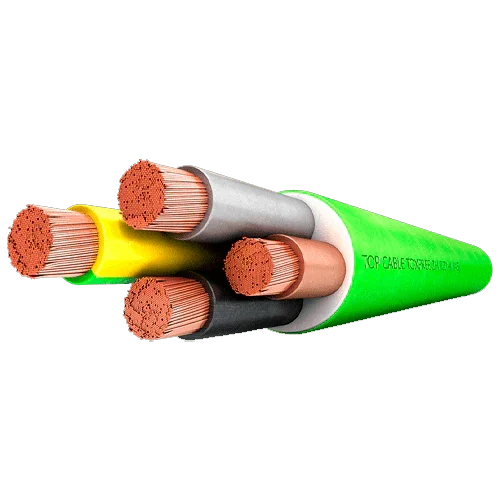

• Four class 5 copper conductors, 4×4 mm² cross-section (high flexibility).
• XLPE insulation 90 °C and LSZH halogen-free sheath.
• Fire reaction: CPR Cca-s1b,d1,a1, low emission of smoke and corrosive gases.
• Indoor, outdoor, tray, conduit, or buried installation.

Advantages or Benefits

• Higher capacity than 3×2.5 mm² and lower voltage drop over medium distances.
• Superior handling due to class 5 flexible conductor.
• Enhanced safety in buildings and civil works (LSZH, CPR Cca).
• Thermal and mechanical durability thanks to XLPE.
• Custom supply: sold by the meter to optimize costs.

Purpose or Applications

Low voltage distribution, panel supply, control, and general services in residential, office, and industrial settings. In photovoltaics, suitable for auxiliary AC distribution and service lines with CPR requirements.

Technical Specifications

Compatibilities

Accepts ferrules/terminals for 4 mm², metric cable glands, and standardized conduits (tube, tray, trench). Size protections and currents according to REBT/ITC-BT and voltage drop calculation.

The RZ1-K Green Hose 4x4mm² Halogen-Free 0.6/1kV combines CPR safety, flexibility, and custom supply for reliable and durable low voltage wiring.
