RZ1-K Green Hose 4x6mm² Halogen Free 0.6/1kV

Product Description

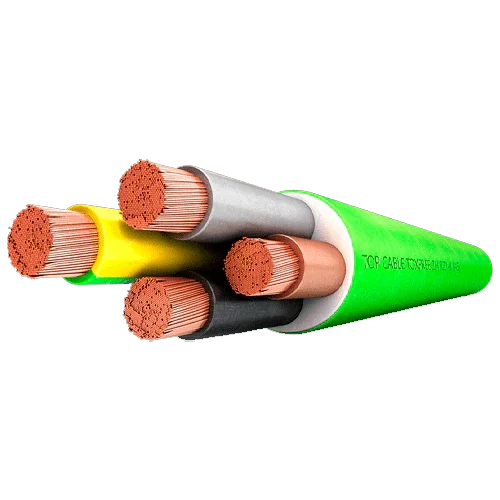

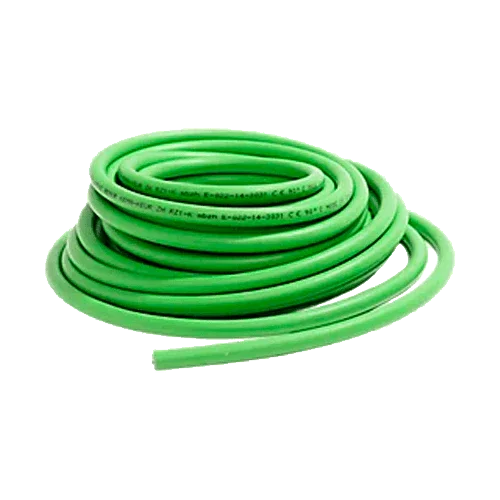

The RZ1-K Green Hose 4x6mm² Halogen-Free 0.6/1kV is a flexible multipolar cable with a larger cross-section for low voltage distributions and connections with high demand. Its four class 5 copper conductors ensure great manageability; the XLPE insulation provides thermal stability up to 90 °C and the LSZH halogen-free sheath offers maximum safety with very low smoke opacity/toxicity. Certified CPR Cca-s1b,d1,a1, it is suitable for residential, tertiary, industrial, and infrastructure applications, as well as for photovoltaic plant balance of system (AC side). Supplied by the meter to adjust the length of the run.

Main Features

• Rated voltage 0.6/1 kV; test voltage 3.5 kV.
• Conductors: 4 × 6 mm² class 5 copper (high flexibility).
• Insulation XLPE 90 °C and LSZH halogen-free sheath.
• Fire reaction: CPR Cca-s1b,d1,a1.
• Installation: indoor, outdoor, on tray, in conduit, or buried duct.

Advantages or Benefits

• Lower voltage drop and higher current capacity compared to 4 mm².
• CPR safety with low smoke emission and zero halogen content.
• Outstanding manageability due to class 5 conductor and favorable bending radii.
• Thermal and mechanical durability inherent to XLPE.
• Custom supply thanks to sale by the meter.

Purpose or Applications

Power supply and branch circuits between panels, risers, and internal networks in buildings and warehouses; AC distribution in solar plants (from inverters to panels/transformer stations) when 6 mm² per conductor is required due to distance or current.

Technical Specifications

Compatibilities

Compatible with ferrules/terminals for 6 mm², metric cable glands, and standard conduits (pipe, tray, trench). Size protections and cross-section according to REBT/ITC-BT, admissible currents, and voltage drop calculation.

The RZ1-K Green Hose 4x6mm² Halogen-Free 0.6/1kV offers CPR safety, high manageability, and electrical capacity for reliable and durable low voltage wiring.
