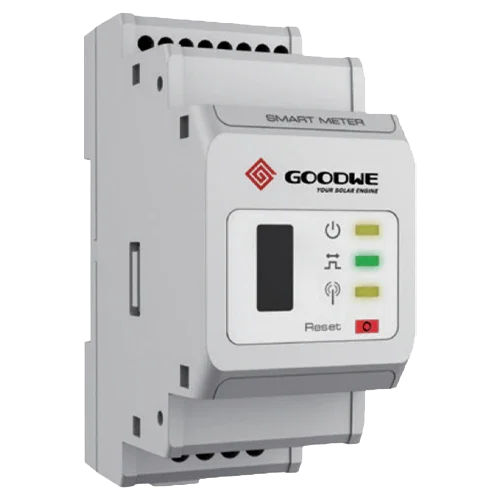

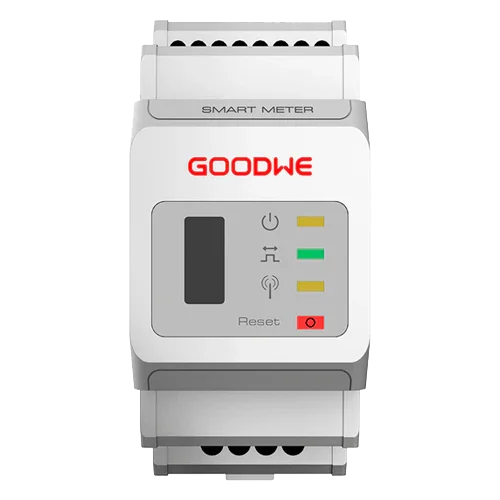

GoodWe GM3000 Smart Meter Three-phase 120A RS485

Product Description

The GoodWe GM3000 Three-phase Smart Meter 120A RS485 is designed to monitor three-phase solar installations accurately and efficiently. It integrates RS485 communication to connect with GoodWe inverters and the SEMS platform, enabling advanced functions such as export limitation, real-time consumption monitoring, and comprehensive energy management. It is compact, mounts on a DIN rail, and already includes the 3 current transformers required for operation.

Main Features

• Three-phase measurement of active and reactive energy with accuracy class 1 and 2
• Compatible with GoodWe ET, EM, DT, MT, HT inverters
• RS485 communication up to 1000 m distance
• Includes 3 current transformers (CTs) of 120 A : 40 mA
• Grid voltage: 230 V L-N / 400 V L-L
• Compact DIN rail mounting (2 modules)

Advantages or Benefits

• Ideal for zero export control and solar energy management
• Easy integration with GoodWe inverters and SEMS portals
• High accuracy for residential or commercial applications
• Transformers included: everything ready for installation
• Allows analysis of voltages, power, energy, and power factor

Purpose or Applications

This meter is intended for three-phase photovoltaic installations where advanced and precise consumption monitoring is required, both in homes and in SMEs or industries. Its integration with GoodWe enables export control and data visualization from the SEMS portal or apps such as EZManage.

Technical Specifications

Compatibilities

This product is compatible with: GoodWe three-phase inverters such as the ET, EM, DT, MT, HT series and devices EzLogger Pro and SEC1000.

GoodWe GM3000 Three-phase Smart Meter 120A RS485 is a professional solution for demanding renewable energy projects. It increases autonomy, optimizes space, and improves the efficiency of your installation.
