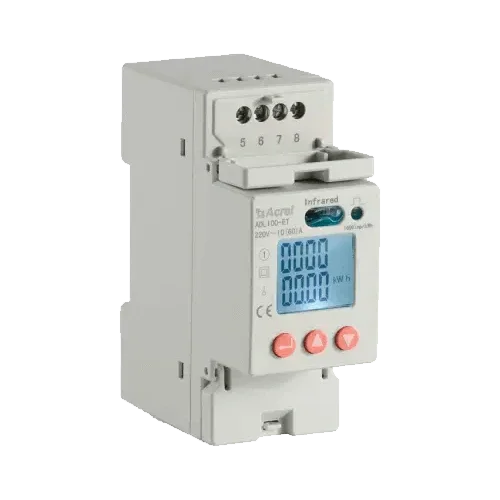

Acrel ADL100-ET Single-phase Meter for Solis

Product description

The Acrel ADL100-ET Single-Phase Meter for Solis is a compact and efficient solution for energy monitoring in residential solar installations. Designed for DIN rail mounting, this meter is ideal for limited spaces and integrates seamlessly with Solis single-phase inverters and the Export Manager EPM1-5G, enabling zero export functions and precise consumption reading.

Main features

• Direct current measurement up to 80 A (without external transformers)
• RS485 communication with Modbus RTU protocol
• Backlit LCD display for local reading
• Accuracy class 1.0 in active energy
• DIN rail mounting, 1 module (18 mm)
• Full compatibility with Solis single-phase inverters and SolisCloud

Advantages or benefits

• Facilitates zero export control in installations with Solis EPM1-5G
• Avoids the use of CT transformers, simplifying installation
• Perfect for homes or small installations with space limitations
• Allows real-time viewing of consumption and production
• Compatible with multiple monitoring platforms thanks to Modbus

Purpose or applications

This meter is ideal for single-phase solar installations in homes or small businesses that need to measure active energy accurately. Very useful as a complement for Solis systems requiring zero export, or for users who want to know the actual consumption from the electrical panel.

Technical specifications

Compatibilities

This product is compatible with: Solis EPM1-5G, Solis S6-GR1P1K-M, Solis S6-GR1P1.5K-M, Solis S6-GR1P2K-M, Solis S6-GR1P2.5K-M, Solis S6-GR1P3K-M, Solis S6-GR1P4K, Solis S6-GR1P5K, Solis S6-GR1P6K, Solis S5-EH1P3K-L, Solis S5-EH1P3.6K-L, Solis S5-EH1P5K-L, Solis S5-EH1P6K-L.

Acrel ADL100-ET Single-Phase Meter for Solis is a precise and compact tool that optimizes energy control in residential installations. It improves efficiency, reduces feed-in risks, and allows clear, real-time energy visualization.
