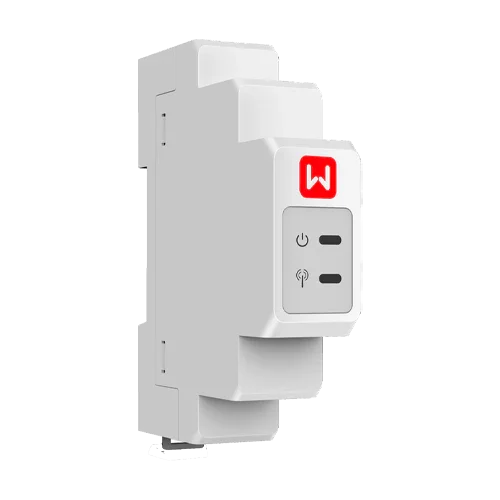

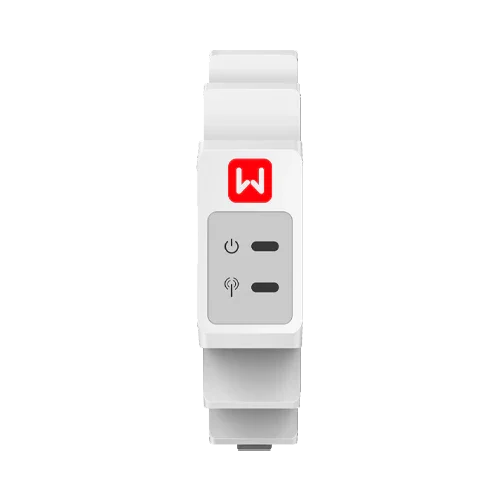

GoodWe GMK110 Single-phase Meter with CT Included

Product Description

The GoodWe GMK110 Single-Phase Meter with CT Included is an intelligent measuring device designed to monitor real-time electricity consumption in residential solar installations. Thanks to its RS485 communication and direct integration with the GoodWe SEMS portal, it enables export control activation, detailed consumption visualization, and improved energy management of the installation.

Main Features

• Accurate single-phase measurement with current transformer (CT) included
• Compatible with GoodWe SEMS for export control and energy analysis
• Accuracy class 1 for active energy (±1 %) · Class 2 for reactive
• Quick DIN rail installation · Power supply between 85–288 V
• RS485 communication with range up to 1000 m
• Compact size: 19 × 85 × 67 mm · Weight: 50 g

Advantages or Benefits

• Enables compliance with legal export control requirements
• Real-time reading of consumption, voltage, and current
• Ideal for single-phase residential self-consumption installations
• Includes calibrated current transformer (120 A : 40 mA)
• High reliability even in demanding environments (-30 °C to +60 °C)

Purpose or Applications

The GoodWe GMK110 meter is aimed at single-phase solar installations, especially those that require household consumption measurement, enable dynamic export control, or simply optimize system monitoring from the SEMS portal. It is compatible with single-phase hybrid or grid-tied inverters that use the RS485 interface.

Technical Specifications

Compatibilities

This product is compatible with GoodWe inverters from the following series: EH, EM, ES, NS, DNS, XS (depending on model). It can also be connected to EzLogger Pro.

GoodWe GMK110 Single-Phase Meter with CT Included is a professional solution for demanding renewable energy projects. It increases autonomy, optimizes space, and improves the efficiency of your installation.
