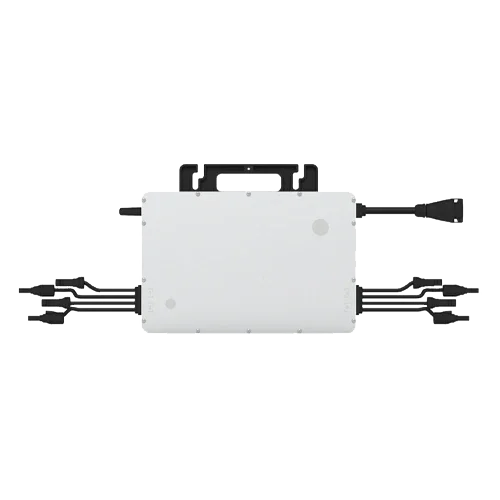

Hoymiles Microinverter HMS-2000-4T 2000W 4 MPPT 4 Panels

Modelo: HMS-2000-4T

Sku: HOYMINV007
Vendor: Hoymiles

€516,64 EUR

€413,30 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Hoymiles Microinverter HMS-2000-4T 2000W with 4 independent MPPTs for 4 panels. Input 4×16 A and MPPT 16–60 V, IP67, CEC efficiency 96.5% and Sub-1G monitoring in S-Miles Cloud.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Hoymiles HMS-2000-4T 2000W 4 MPPT 4 Panel Microinverter is the top-of-the-line single-phase 4-in-1 model of the HMS series. Designed to achieve maximum performance per module, it integrates 4 independent MPPTs (one per panel) with a wide MPPT range of 16–60 V and an input current of 4×16 A, ideal for next-generation high-amperage panels. Its IP67 enclosure, natural convection cooling, and galvanic isolation ensure reliability and safety outdoors, while Sub-1G communication with DTU enables robust per-panel monitoring via S-Miles Cloud.

Main Features

Rated AC power: 2000 VA at 230 V, 50 Hz (nominal current ≈ 8.7 A).
4 MPPT / 4 inputs (1 per MPPT) for module-level optimization.
MPPT range: 16–60 V; startup voltage 22 V; max. input voltage 65 V.
Max. input current: 4×16 A; admissible Isc: 4×25 A.
CEC efficiency 96.5%; MPPT efficiency 99.8%; THD <3%; PF >0.99 (adjustable).
IP67 protection, HF isolation, and rapid shutdown for rooftop safety.

Advantages or Benefits

Maximum yield in shaded or mixed orientations thanks to per-panel MPPT control.
Less cabling and installation time with the single-phase 4-in-1 format.
Ready for large-format modules without current throttling (up to 16 A per input).
Silent and robust operation: passive dissipation, IP67 sealing, and very low night consumption.
Advanced management in S-Miles Cloud with alarms, history, and per-module analysis.

Purpose or Applications

Ideal for residential self-consumption and light commercial use with expansion in groups of four panels: complex rooftops, pergolas, solar carports, or projects requiring granular performance control and zero export via external metering.

Technical Specifications

Rated AC power	2000 VA
Voltage / Frequency	230 V (180–275 V) / 50 Hz (45–55 Hz)
No. of MPPT / Inputs	4 / 1 per MPPT
MPPT range	16–60 V (startup voltage 22 V)
Max. input voltage	65 V
Max. input current	4×16 A (Isc 4×25 A)
CEC / MPPT efficiency	96.5% / 99.8%
THD / PF	<3% / >0.99 (0.8 leading…0.8 lagging)
Recommended modules	400–670 W
Communication	Sub-1G with DTU; S-Miles Cloud monitoring
Isolation	HF transformer (galvanic) · rapid shutdown
Cooling	Natural convection (no fans)
Protection rating	IP67 (outdoor)
Dimensions / Weight	331×218×40.6 mm / 5.56 kg
Ambient temperature	−40…+65 °C
Units/branch (10 AWG)	up to 3 microinverters*
Standards	EN 50549-1, VDE-AR-N 4105, IEC/EN 62109, EMC

*The exact number per branch depends on local regulations and the design of protections/wiring.

Compatibilities

Compatible with DTU gateways DTU-WLite-S, DTU-Lite-S, DTU-W100, DTU-Pro-S, and DTU-Pro-4G; HMS accessories: HMS Connector, Trunk Cable AC 10 AWG, Connection Cable, Extension Connector, Sealing Cap, and disconnection tool. Integrable with DDSU666 (1F) and DTSU666 (3F) meters for export control.

The Hoymiles HMS-2000-4T 2000W Microinverter combines power, safety, and module-level management to maximize the performance and reliability of your photovoltaic system.
