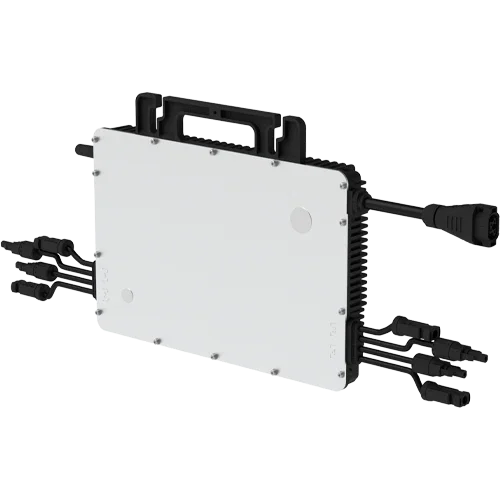

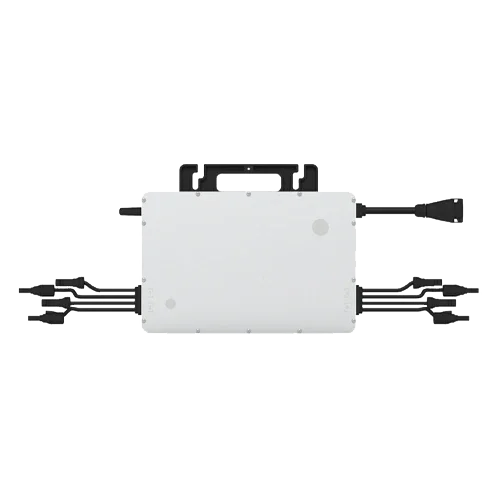

Hoymiles Three-Phase Microinverter HMT-2000-4T 2000W 4 Inputs

Modelo: HMT-2000-4T

Sku: HOYMINV010
Vendor: Hoymiles

€539,66 EUR

€431,73 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Hoymiles HMT-2000-4T 2000W Three-Phase Microinverter with 4 inputs and 2 MPPT. Input 4×16 A, MPPT 16–60 V, output 230/400 V and IP67. CEC efficiency 96.5% and Sub-1G communication with S-Miles Cloud.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Hoymiles HMT-2000-4T 2000W Three-Phase Microinverter 4 Inputs is the most powerful model in the HMT-4T series, designed to integrate four modules into a single unit with a stable three-phase output of 230/400 V. Its architecture with 2 MPPT (two inputs per MPPT) optimizes pairs of panels independently, maximizing energy on roofs with shading or different orientations. With 4×16 A input current, MPPT 16–60 V, and IP67 enclosure, it offers compatibility with high-amperage panels, outdoor robustness, and reliable monitoring via Sub-1G and S-Miles Cloud.

Main Features

Nominal output power: 2000 VA three-phase (≈2.9 A × 3 at 230 V).
2 MPPT / 4 inputs: 2 strings per MPPT for pair optimization.
MPPT range: 16–60 V; startup 22 V; max. input voltage 65 V.
Max. input current: 4×16 A; admissible Isc: 4×25 A.
CEC efficiency 96.5% and MPPT efficiency 99.8%; THD < 3%; PF > 0.99 (adjustable).
IP67 protection, natural convection cooling, and galvanic isolation.

Advantages or Benefits

More power per unit: 2 kVA three-phase reducing branches and connections.
Greater compatibility with large-format modules thanks to 16 A per input.
Agile installation in groups of four panels with less DC and AC cabling.
Reliable operation: no fans, IP67 sealing, and ultra-low night consumption.
Advanced management per module with alarms, history, and reactive power control.

Purpose or Applications

Ideal for three-phase self-consumption in SMEs, warehouses, parking lots, and homes with a 3F grid where modularity by groups of four panels, export control, and phased growth are prioritized without losing individual performance visibility.

Technical Specifications

Nominal AC power	2000 VA (three-phase 230/400 V)
Nominal AC current	≈2.9 A × 3
MPPT / Inputs	2 MPPT / 4 inputs (2 per MPPT)
MPPT range	16–60 V (Vstart 22 V) · Vmax 65 V
Max. input current	4×16 A (Isc 4×25 A)
CEC / MPPT efficiency	96.5% / 99.8%
THD / PF	<3% / >0.99 (0.8 leading…0.8 lagging)
Recommended modules	400–670 W
Communication	Sub-1G with DTU · S-Miles Cloud
Isolation	HF transformer (galvanic) · rapid shutdown
Cooling	Natural convection (no fans)
Protection rating	IP67 (outdoor use)
Dimensions / Weight	326×222×40.6 mm / 5.9 kg
Ambient temperature	−40…+65 °C
Units/branch*	10 AWG: up to 11 · 12 AWG: up to 6
Standards	EN 50549-1, VDE-AR-N 4105, IEC/EN 62109, EMC

*The actual number per branch depends on local regulations and protection/cabling design.

Compatibilities

Compatible: DTU gateways DTU-WLite-S, DTU-Lite-S, DTU-W100, DTU-Pro-S, DTU-Pro-4G; meters DDSU666 (1F) and DTSU666 (3F) for export control; and accessories from the HMS/HMT ecosystem: HMS/HMT Connector, Trunk Cable AC 10 AWG, Connection Cable, Extension Connector, Sealing Cap, and disconnection tool. No internal URLs, listed by name.

The Hoymiles HMT-2000-4T combines three-phase power, safety, and granular monitoring for professional photovoltaic projects seeking maximum reliability and per-module performance.
