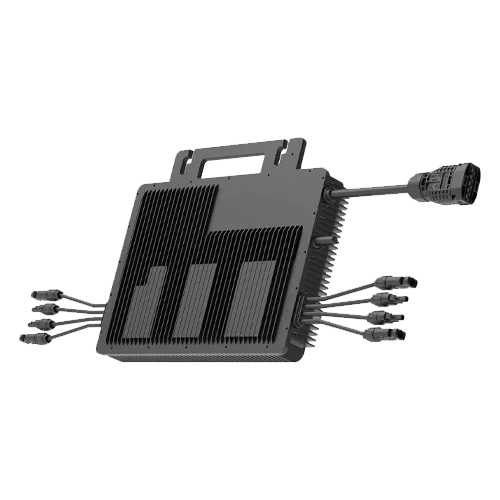

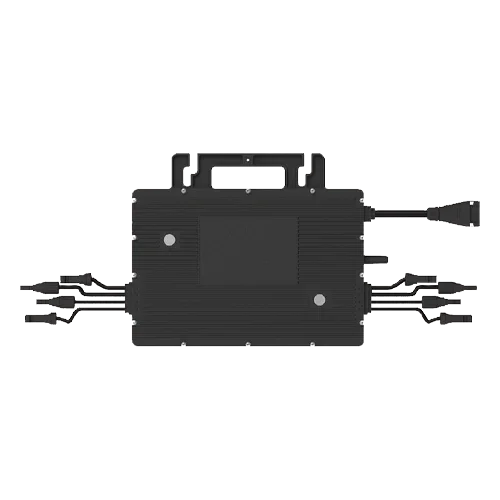

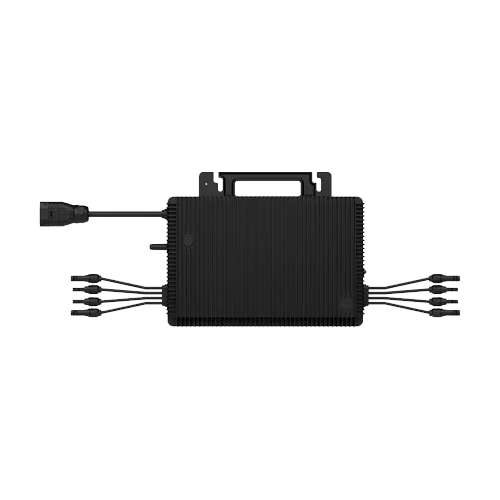

Hoymiles Three-Phase Microinverter MIT-5000-8T 5000W 8 Inputs
Modelo: MIT-5000-8T- Sku: HOYMINV012
- Vendor: Hoymiles
Specifications
Product description
The Hoymiles MIT-5000-8T 5000W 8-Input Three-Phase Microinverter is Hoymiles' new 8-in-1 generation to maximize energy on commercial and industrial rooftops. It integrates 4 MPPT (one per pair of inputs) and supports input current of 4×20 A, allowing pairing with high-amperage, large-format modules without bottlenecks. With a wide MPPT range of 12–136 V (start 32 V) and a maximum voltage of 140 V, it efficiently extracts power from sunrise to sunset. Its stable three-phase output of 230/400 V, peak efficiency of 97.4%, IP67 enclosure, and Sub-1G communication for S-Miles Cloud make the MIT-5000-8T a robust, scalable, and easy-to-maintain solution.
Main features
- Nominal output power: 5000 VA (nominal current 3×7.25 A at 230/400 V, 50/60 Hz).
- 4 MPPT with 1 input per MPPT; 8-in-1 architecture for eight modules.
- MPPT range: 12–136 V; recommended tracking peak 66–136 V; start 32 V; max DC voltage 140 V.
- Input current: 4×20 A (Isc max. 4×25 A).
- Efficiencies: peak 97,4 %, European 96.4%, MPPT 99.8%; THD <3%; PF >0.99 (0.8 leading…0.8 lagging).
- Enclosure IP67, convection cooling (no fans), and low night-time self-consumption (<50 mW).
Advantages or benefits
- Reduced cost per kW: a single unit manages 8 modules, fewer branch connections, and less installation time thanks to Flex-T5 cabling.
- Higher yield on roofs with shading or mixed orientations by operating with 4 MPPTs that optimize each pair of panels.
- High compatibility with 600–750 W modules and 182/210 mm cells due to its 20 A per MPPT capacity.
- Outdoor reliability: IP67 sealing, transformerless electronics, and passive dissipation for longer service life.
- Advanced management at module level with monitoring, alarms, and remote O&M in S-Miles Cloud.
Purpose or applications
Designed for three-phase self-consumption in commercial buildings, warehouses, solar carports, farms, and also for homes with a 3-phase grid seeking a modular and scalable solution in groups of eight panels. Ideal when granular performance control, compatibility with high-amperage modules, and reduced installation costs are required.
Technical specifications
| Nominal AC power | 5000 VA |
| Nominal AC current | 3×7,25 A |
| Voltage / Frequency | 230/400 V (3L+N+PE) / 50–60 Hz (45–55 / 55–65 Hz) |
| No. of MPPT / Inputs | 4 MPPT / 1 input per MPPT (8 total inputs) |
| MPPT range | 12–136 V (peak 66–136 V · start 32 V) |
| Max. DC voltage | 140 V |
| Max. input current | 4×20 A (Isc 4×25 A) |
| Peak efficiency / EU / MPPT | 97,4 % / 96,4 % / 99,8 % |
| THD / PF | <3 % / >0.99 (0.8 lead…0.8 lag) |
| Standard modules | 600–750 W |
| Units per branch** | 2.5 mm²: 3 · 4 mm²: 4 · 6 mm²: 5 |
| Communication | Sub-1G with DTU; monitoring in S-Miles Cloud |
| Topology | Transformerless |
| Cooling | Natural convection |
| Degree of protection | IP67 (outdoor) |
| Dimensions / Weight | 395×308×60 mm / 9 kg |
| Ambient temperature | −40…+65 °C |
| Standards | EN 50549-1/-10, IEC/EN 62109-1/-2, EMC |
**Indicative values; check regulations and protection/wiring design for the exact number per branch.
Compatibilities
Compatible with DTU-WLite-S, DTU-Lite-S, DTU-W100, DTU-Pro-S, and DTU-Pro-4G gateways; Hoymiles ecosystem and accessories: Flex-T5 wiring system, HMS/HMT/MIT Connector, Trunk Cable AC, Connection Cable, Extension Connector, Sealing Cap, and disconnection tool; DDSU666 (1F) and DTSU666 (3F) meters for export control. No internal URLs provided, listed by name.
The Hoymiles MIT-5000-8T 5000W combines three-phase power, high input current, and module-level monitoring to offer the most efficient and competitive 8-in-1 solution for professional solar projects.
