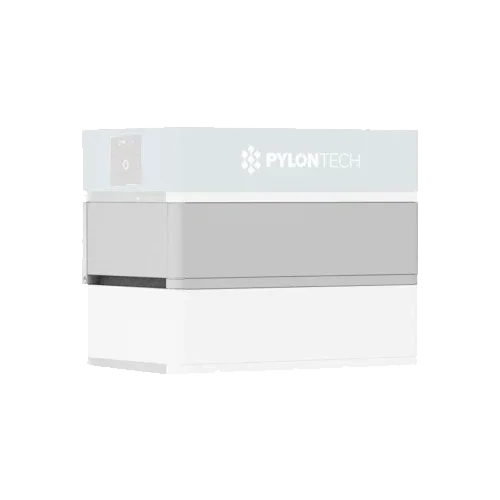

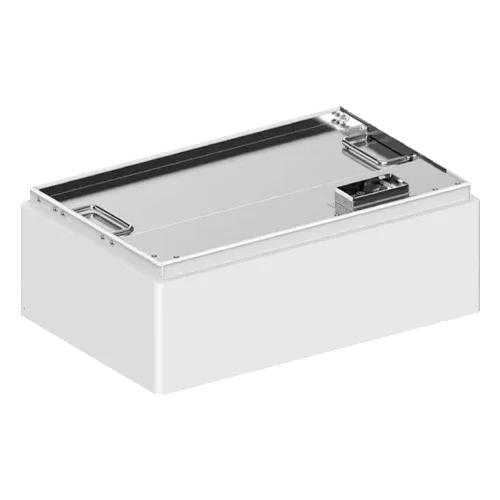

Lithium Battery Module Pylontech HV 5.12kWh FH10050 Force H3
Modelo: FH10050 Force H3- Sku: PYLOBAT008
- Vendor: Pylontech
Specifications
Product Description
The Pylontech Lithium Battery Module HV 5.12kWh FH10050 Force H3 is the energy block of the high-voltage Force H3 family. Each 5.12 kWh LFP module is installed in series under the BMS FC1000-FH3 to build HV stacks of 204.8–716.8 V with high efficiency, safety, and seamless integration with high-voltage hybrid inverters via CAN/RS485/Modbus RTU. Its floor-standing design with IP55 rating, high density, and guided assembly simplifies commissioning and future expansion.
Main Features
- Energy per module: 5.12 kWh (≈102.4 V nominal, LiFePO4 chemistry).
- Series operation with BMS FC1000-FH3: 2–7 modules per string (204.8–716.8 V).
- High safety: LiFePO4 with electronic protections and balancing managed by BMS.
- Floor-standing format IP55 with robust structure and front access.
- Comprehensive telemetry (SoC/SoH, voltages, temperature) via CAN/RS485.
Advantages or Benefits
- True scalability: expand energy by adding modules without reworking the system.
- Efficiency: high voltage = lower currents and less cable loss.
- Safety: stable LFP chemistry and active BMS protections.
- Minimal maintenance: modular design with updatable firmware.
- Professional integration: standard communications that prevent alarms and shutdowns.
Purpose or Applications
Residential and light commercial with HV hybrid inverters: self-consumption, backup for critical loads, time-of-use arbitrage, and peak reduction. Ideal when reliability, future growth, and a tidy technical room are required.
Technical Specifications
| Energy per module | 5.12 kWh |
| Nominal module voltage | ≈102.4 V (LFP) |
| System architecture | Series of 2–7 modules with BMS FC1000-FH3 (204.8–716.8 V) |
| Typical usable capacity | ≈95% DoD (controlled by BMS) |
| Charge/discharge current | Nominal 50 A; max. short 55 A |
| Communication | CAN / RS485 / Modbus RTU (via BMS) |
| Parallel | Up to 6 groups in parallel |
| Protection | OV/UV, OC, temperature, short circuit, cell balancing |
| Protection rating | IP55 (Force H3 assembly, protected indoor use) |
| Thermal range | Charge −10…55 °C · Discharge −20…45 °C |
| Humidity/Altitude | 5–95% non-condensing · <4000 m |
| Lifespan/cycles | Design >15 years · >8000 cycles (25 °C) |
| Dimensions / weight | Force H3 cabinet: module ≈540×350×530 mm · ≈92 kg |
| Certifications | CE, UN38.3, IEC62619, IEC63056, UL1973, UL9540A, VDE-AR-E 2510-50 |
Compatibilities
Direct compatibility with BMS FC1000-FH3 and other FH10050 modules. Integration with HV hybrid inverters via CAN/RS485 (see official list by model). Accessories: Force H3 rack/base and interconnection cabling.
The Pylontech Lithium Battery Module HV 5.12kWh FH10050 Force H3 is the safe, efficient, and scalable foundation for building high-performance HV systems for self-consumption and backup.
