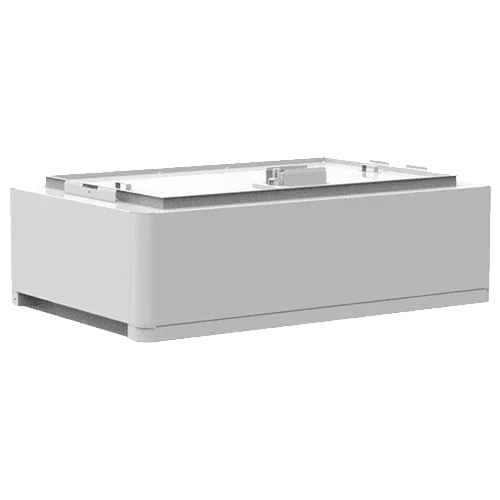

Lithium Battery Module Pylontech HV 3.55kWh FH48074 Force H1
Modelo: FH48074 Force H1- Sku: PYLOBAT006
- Vendor: Pylontech
Specifications
Product Description
The Pylontech HV Lithium Battery Module 3.55 kWh FH48074 Force H1 is the energy unit that makes up the Force H1 high-voltage systems. Each 3.55 kWh module (LiFePO4) is connected in series under the BMS FC0500-40S to build battery banks of 144–336 V with outstanding reliability for self-consumption and backup.
Main Features
- Energy per module: 3.55 kWh (approx. 51.2 V · 74 Ah, LiFePO4).
- Series installation: 3–7 modules per string with BMS FC0500-40S.
- Extended cycle life (>6000 typical DoD cycles) and high intrinsic LFP safety.
- Stackable Force H1 rack format with cable management and easy expansion.
- Voltage/temperature monitoring by BMS and cell balancing.
Advantages or Benefits
- True scalability: start with 10.65 kWh and grow up to 24.86 kWh.
- Efficiency and stability: low internal resistance, predictable response with HV inverters.
- Safety: LFP chemistry, BMS protections, and robust construction.
- Optimized total cost: expand energy without changing the control electronics.
- Clean integration: slim, stackable modules with minimal maintenance.
Purpose or Applications
Residential and light commercial systems with high-voltage hybrid inverters, where fast backup, time-of-use arbitrage, maximization of self-consumption, and three-phase support are required.
Technical Specifications
| Energy per module | 3.55 kWh |
| Nominal voltage (module) | ≈51.2 V (LiFePO4) |
| Nominal capacity | ≈74 Ah |
| Typical operating window | ≈44.8–57.6 V per module |
| System composition | Series of 3–7 modules with BMS FC0500-40S (144–336 V) |
| Communication | Via BMS (CAN/RS485 to inverter) |
| Cycle life | >6000 (typical DoD, 25 °C) |
| Protection rating | IP20 (indoor use) |
| Dimensions / weight | Slim Force H1 rack format (see official drawing for exact measurements) |
| Operating temperature | Charge 0–50 °C · Discharge −10–50 °C |
| Certifications | CE, UN38.3, electrical safety for HV systems |
Compatibilities
Direct compatibility with BMS FC0500-40S (Force H1). Integration with HV hybrid inverters via CAN/RS485 (see official list by model). Accessories: Force H1 base/rack and interconnection cabling.
The Pylontech HV Lithium Battery Module 3.55 kWh FH48074 Force H1 is the solid, safe, and scalable foundation for building your high-voltage storage system with maximum reliability.
