Lithium Battery Module Pylontech HV 3.55kWh FH9637M Force H2
Modelo: FH9637M Force H2- Sku: PYLOBAT007
- Vendor: Pylontech
Specifications
Product Description

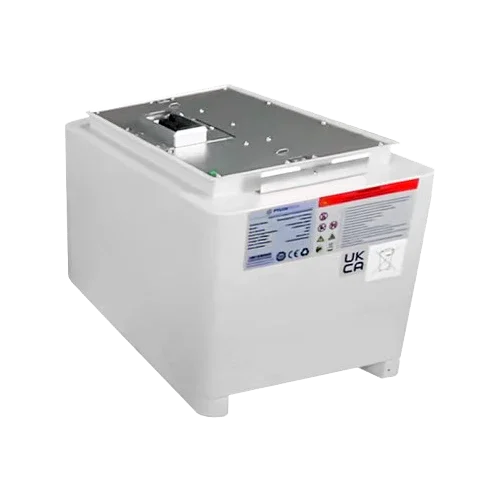

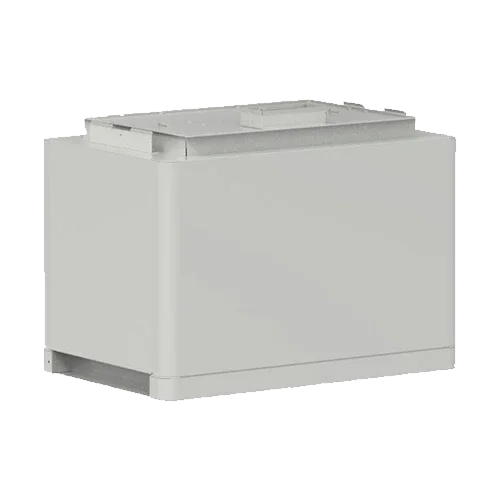

The Pylontech HV Lithium Battery Module 3.55 kWh FH9637M Force H2 is the base component of the Force H2 high-voltage systems. Each module delivers 3.55 kWh with LiFePO4 (LFP) chemistry, operating in series under the BMS FC0500M-40S to build stable, safe, and efficient HV battery banks. It is the ideal option for self-consumption, backup, and small commercial applications that require reliable communication with high-voltage hybrid inverters.
Main Features
- Energy per module: 3.55 kWh (approx. 96 V, 37 Ah LFP).
- Series connection with BMS FC0500M-40S: 2–4 modules per string (192–384 V).
- High safety: LiFePO4 with low degradation and thousands of cycles.

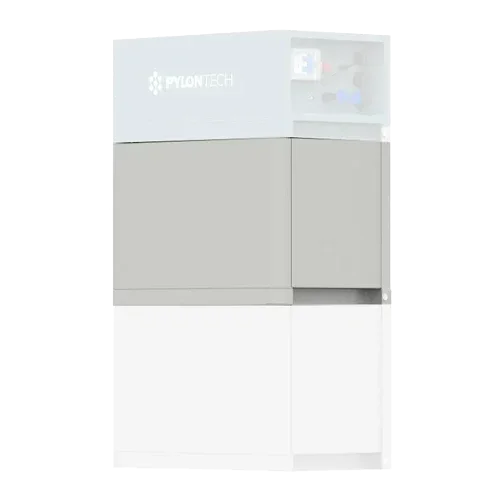

- Force H2 floor format with robust structure and guided installation.
- Telemetry and balancing managed by the BMS for precise SoC/SoH.
Advantages or Benefits
- Scalability: expand energy by adding modules without changing the architecture.
- Efficiency: high-voltage operation → lower currents and reduced losses.
- Safety: LFP + BMS protections against voltage, current, and temperature.
- Minimal maintenance: modular design, integrated monitoring, and updatable firmware.
- Professional integration: stable synchronization with HV inverters via the BMS.
Purpose or Applications
Residential and light commercial use with HV hybrid inverters; increased self-consumption, time-of-use arbitrage, and backup for critical loads. Perfect when seeking reliability and future growth without reworking the technical room.
Technical Specifications
| Energy per module | 3.55 kWh |
| Voltage/Capacity (module) | ≈96 V · ≈37 Ah (LiFePO4) |
| System architecture | Series of 2–4 modules with BMS FC0500M-40S (192–384 V) |
| Communication | Via BMS (CAN/RS485 to inverter) |
| Life cycles | ≥6000 (typical DoD, 25 °C) |
| Protection rating | IP55 at Force H2 assembly level (protected indoor use) |
| Operating temperature | Charge 0–50 °C · Discharge −10–50 °C |
| Dimensions / weight | Force H2 floor format (see manufacturer's drawing) |
| Certifications | CE, UN38.3, IEC 62619 |
Compatibilities
Direct compatibility with BMS FC0500M-40S (Force H2). Integration with HV hybrid inverters via CAN/RS485 through the BMS. Related accessories: Force H2 base/structure and dedicated cabling.
The Pylontech HV Lithium Battery Module 3.55 kWh FH9637M Force H2 allows you to build reliable, safe, and scalable HV systems, ready to operate with high-performance hybrid inverters.
