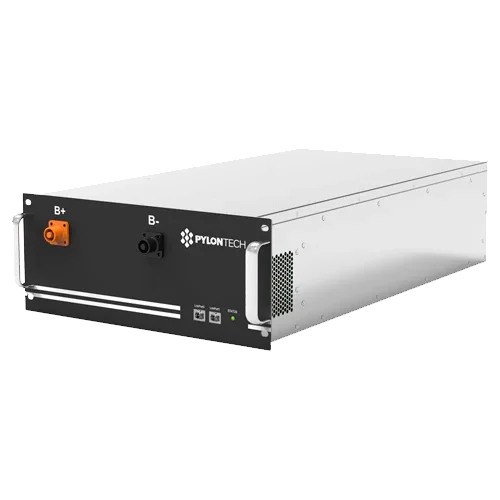

Lithium Battery Module HV Pylontech 4.74kWh H32148 PowerCube M1
Modelo: H32148 PowerCube M1- Sku: PYLOBAT011
- Vendor: Pylontech
Specifications
Product Description
The Pylontech HV Lithium Battery Module 4.74kWh H32148 PowerCube M1 is the high-voltage energy block that shapes commercial and industrial systems on the PowerCube M1 platform. With 4.74 kWh per module and LiFePO4 chemistry, it offers high energy density, long-term reliability, and professional integration in dedicated racks with RS485/CAN communications. Its modular design allows for rapid scaling of total capacity and adjustment to typical C&I consumption profiles: energy shifting, peak shaving, grid stabilization, and backup.
Main Features
- Energy per module: 4.74 kWh, ideal for granular scaling in C&I.
- LFP chemistry with 4000 cycles and operational life >10 years.
- Industrial communication RS485/CAN for control, telemetry, and alarms.
- Native integration in PowerCube M1 rack with series controller/BMS.
- HV architecture: lower currents, reduced loss, and optimized cabling.
Advantages or Benefits
- Availability and safety: Stable LFP, electronic protections, and robust design.
- Scalability: expansion by modules; easy maintenance and replacement.
- Efficiency: high-voltage operation with system performance up to 96% (depending on PowerCube configuration).
- Agile integration: standard protocols for SCADA/EMS via gateway.
- C&I versatility: useful in backup, time-of-use arbitrage, and load stabilization.
Purpose or Applications
Designed for office buildings, commercial premises, hospitals, factories, and data centers that require reliable HV storage for backup, demand modulation, and microgrid support.
Technical Specifications
| Model | H32148 (PowerCube M1) |
| Energy per module | 4.74 kWh |
| Nominal voltage (module) | 32 Vdc |
| Nominal capacity | 148 Ah |
| Voltage window | 30–36 Vdc |
| Depth of discharge | 80% (10–90%) |
| Communications | RS485 / CAN |
| Protection | IP20 (indoor rack use) |
| Dimensions (W×D×H) | 330×628×150.5 mm |
| Weight | ≈48 kg |
| Cycles / life | ≈4000 cycles · >10 years (nominal conditions) |
| Operating temperature | 0–50 °C (storage −20–60 °C) |
| Certifications | TÜV, CE |
Compatibilities
Direct compatibility with PowerCube M1 Rack and series controller/BMS (e.g., SC1000-200E in M1 solutions). Accessories: PowerCube RK rack, wiring harnesses, EMS/SCADA via CAN/RS485 gateway.
The Pylontech HV Lithium Battery Module 4.74kWh H32148 PowerCube M1 provides density, LFP safety, and industrial communications to deploy scalable HV storage in high-performance C&I projects.
