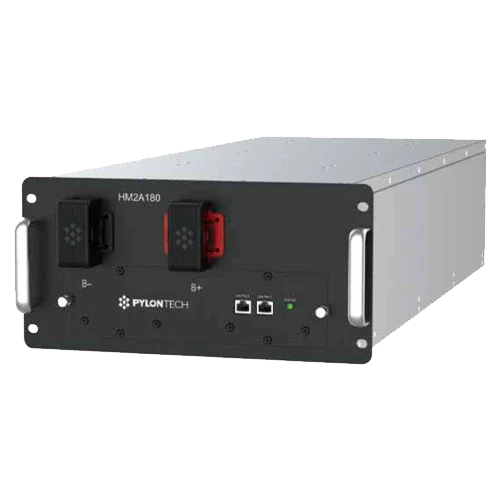

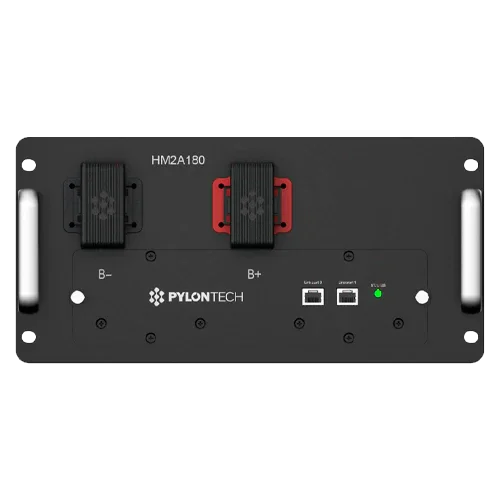

Lithium Battery Module HV Pylontech 3.55kWh HM2A180 PowerCube M2
Modelo: HM2A180 PowerCube M2- Sku: PYLOBAT012
- Vendor: Pylontech
Specifications
Product Description
The Pylontech HV Lithium Battery Module 3.55 kWh HM2A180 PowerCube M2 is designed for scalable commercial platforms operating at high voltage (up to 1000 V). Each 3.55 kWh module with LiFePO4 chemistry integrates into PowerCube M2 racks and is managed by PowerCube series BMS/controllers, with CAN/RS485 communications for telemetry, alarms, and coordination with EMS/SCADA. The IP20 format is optimized for indoor technical rooms, where fast maintenance and front access are key.
Main Features
- Energy per module: 3.55 kWh for granular scaling.
- Operation in HV systems up to 1000 Vdc (depending on M2 configuration).
- LFP chemistry with ≈4000 cycles and lifespan >10 years.
- CAN/RS485 communication for professional integration with EMS/SCADA.
- IP20 design for indoor installation and controlled thermal management.
Advantages or Benefits
- Total modularity: fine-tune capacity and power by adding modules.
- System efficiency: HV bus → lower currents and reduced loss in cabling and electronics.
- Safety and stability: LFP chemistry and BMS protections at cell and module level.
- Agile integration: standard protocols for monitoring, history, and load control.
- Competitive ownership cost: long service life and simplified maintenance.
Purpose or Applications
Designed for C&I solutions: energy shifting, peak shaving, microgrid support, and process backup. Suitable for commercial buildings, factories, hospitals, logistics centers, and data centers requiring reliable and scalable HV storage.
Technical Specifications
| Model | HM2A180 (PowerCube M2) |
| Energy per module | 3.55 kWh |
| System voltage (M2) | Up to 1000 Vdc (depending on number of modules and controller) |
| Chemistry | LiFePO4 (LFP) |
| Communications | CAN / RS485 (integration with BMS/EMS) |
| Protection | IP20 (indoor use) |
| Cycles / lifespan | ≈4000 cycles · >10 years (nominal conditions) |
| Operating temperature | 0–50 °C (storage −20–60 °C) |
| Certifications | TÜV, CE (according to PowerCube family) |
Compatibilities
Direct compatibility with PowerCube M2 Rack and PowerCube series BMS/controllers. Accessories: frame and wiring harnesses, communication gateways for EMS/SCADA.
The Pylontech HV Lithium Battery Module 3.55 kWh HM2A180 PowerCube M2 is a reliable and scalable base component for deploying commercial HV storage with LFP safety, industrial communications, and high efficiency.
