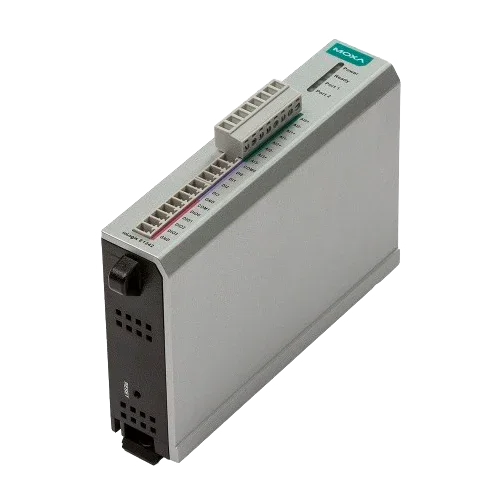

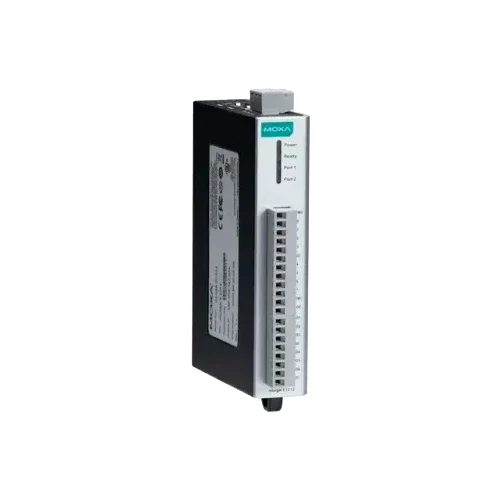

SMA ioLogik E1260 I/O Module 6 RTD Inputs Remote Ethernet

Product Description

The SMA ioLogik E1260 I/O Module is a professional solution for remote thermal monitoring in solar, industrial, or battery systems. With 6 independent RTD inputs, support for PT100/PT1000 sensors, and Ethernet communication, it offers easy integration with the Data Manager EDMM-20 and SCADA platforms. Its industrial design and compatibility with standard protocols make it ideal for demanding installations.

Main Features

• 6 RTD inputs for PT50, PT100, PT500, PT1000 sensors
• Dual RJ45 Ethernet connectivity with daisy chain function
• Compatible protocols: Modbus TCP, EtherNet/IP, SNMP, REST API
• Accuracy ±0.1 % FSR at 25 °C and 0.1 °C resolution
• Industrial IP30 enclosure with CE, UL508, ATEX Zone 2 certification

Advantages or Benefits

• Allows integration of thermal sensors in SMA systems without proprietary wiring
• Ideal for temperature control in battery banks or PV strings
• Reliable and continuous reading via network, compatible with Data Manager and SCADA
• Quick installation on DIN rail with standard 24 VDC power supply
• Supports mass remote configuration via MXConfig and ioSearch

Purpose or Applications

Designed for solar and industrial projects where precise temperature control is required, such as installations with battery banks, photovoltaic strings, generators, or tanks. It integrates perfectly with SMA EDMM-20 and other SCADA platforms via Ethernet.

Technical Specifications

Compatibilities

This product is compatible with: SMA Data Manager M EDMM-20.

SMA ioLogik E1260 I/O Module is a key tool for advanced energy projects with thermal control requirements. Its versatility, robustness, and compatibility with industrial standards make it a reliable and scalable solution.
