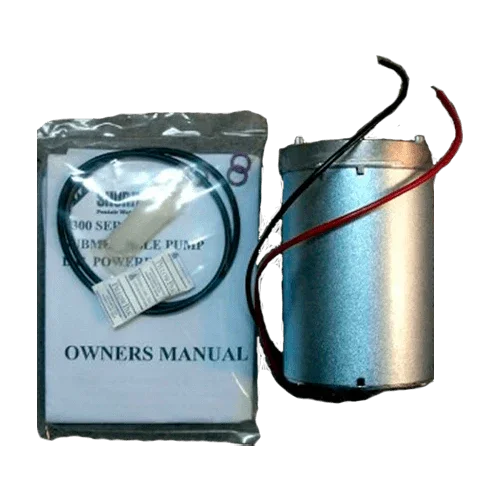

Shurflo 94-139-00 Motor for 9300 Solar Pump
Modelo: 94-139-00- Sku: SHURREP016
- Vendor: Shurflo
Specifications
Product description

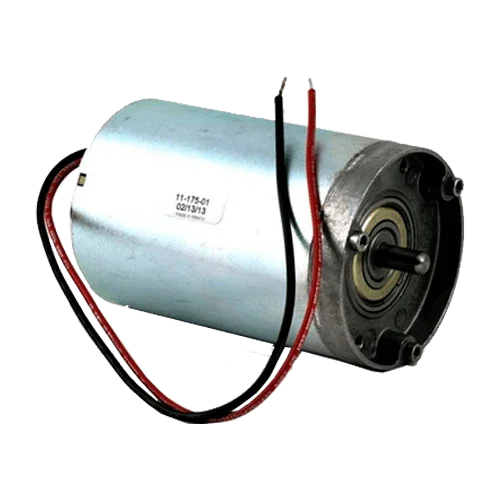

The Shurflo 94-139-00 Motor is the original replacement for submersible pumps of the 9300 series. Designed for continuous use in demanding environments, it delivers the torque required to maintain the flow rate and head characteristic of the 9300, with consumption adjusted for 24 V photovoltaic systems. Its integrated thermal protection enhances safety and prevents damage from overload or hydraulic blockage, extending the service life of the pumping assembly.
Main features
- Nominal voltage 24 VDC, optimized for off-grid solar installations.
- Internal thermal protection that disconnects in case of overheating.
- High starting torque for water columns in deep wells.
- Sealed construction suitable for continuous submersible operation.
- 100% compatibility with the hydraulics and head of the 9300 series (e.g., 9325).
Advantages or benefits
- Restores original power when the old motor shows loss of performance.
- Reduces shutdowns due to thermal trips thanks to improved dissipation and control.
- Optimizes efficiency in solar systems: better operating point at equal irradiation.
- Direct installation without adapters, maintaining wiring and connector geometry.
- Lower total cost of ownership by extending the life of the hydraulic assembly.
Purpose or applications
Recommended for wells used in irrigation, farms, remote homes, transfers to elevated tanks, and supply applications with solar energy. Ideal when there are signs of overheating, abnormal noises, high consumption, or failed starts.
Technical specifications
| Reference | 94-139-00 (9300 series motor) |
| Nominal voltage | 24 VDC |
| Protections | Internal thermal against overheating |
| Service | Continuous in immersion (depending on installation conditions) |
| Compatibility | Shurflo 9300 series pumps (including 9325) |
| Connection | Via Connector 94-136-00 (recommended to replace if damaged) |
| Indicative performance* | Up to ~443 l/h and ~70 m with 9300 hydraulics under nominal conditions |
*Indicative values for the complete system with the hydraulic assembly in good condition.
Compatibilities
Direct compatibility: Shurflo 9300 series submersible pumps.
Related accessories/spare parts: Connector 94-136-00, Valves 94-137-00, Diaphragm 94-138-00, Housing 94-140-00, Gaskets 94-142-00.
The Shurflo 94-139-00 Motor restores your 9300 pump with the strength and reliability needed for stable and efficient water supply in demanding solar installations.
