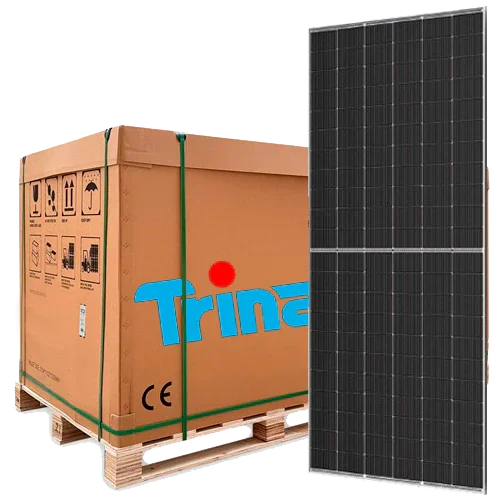

Pallet of 36 Bifacial Solar Panels Trina 615W NEG19RC.20 Vertex S+
Modelo: 615W NEG19RC.20 Vertex S+- Sku: TRINPAL006
- Vendor: Trina Solar
Specifications
Product Description
The Pallet of 36 Trina 615W Bifacial Solar Panels NEG19RC.20 Vertex S+ offers a high-power solution with optimized logistics for commercial and industrial projects. With thirty-six N-type i-TOPCon modules of 615 W, dual-glass encapsulation, and 80% bifaciality (±5%), it achieves 22.14 kWp per pallet, reducing unloading, storage, and installation times while maximizing annual generation and lowering LCOE.
Main Features

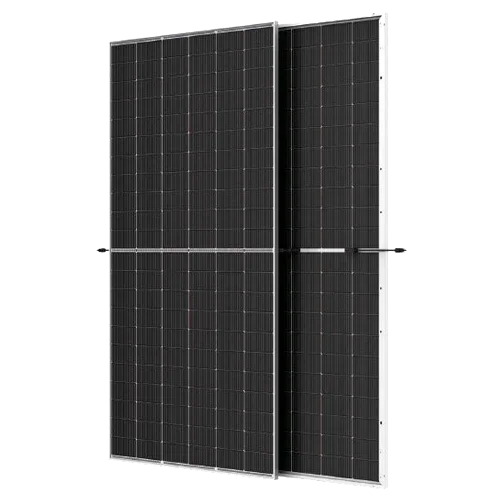

- 36 Trina Vertex S+ TSM-NEG19RC.20 modules, 615 W each, 0~+5 W tolerance, and 22.8% efficiency.
- Dual-glass 2.0 mm + 2.0 mm, 30 mm frame, IP68 junction box, and 5400/2400 Pa load ratings.
- 132 half-cut N-type i-TOPCon cells with controlled degradation (1% + 0.4%/year up to 30 years).
- Module parameters (STC): Vmp ≈ 49 V, Imp ≈ 12.8 A; Voc ≈ 49–50 V, Isc ≈ 13 A.
- Max. system 1500 V DC, 35 A series fuse; NOCT 43 ± 2 °C; Pmax coefficient −0.29%/°C.
- Module dimensions/weight: 2382×1134×30 mm, 33.7 kg; MC4-EVO2/TS4 Plus connectors, 4 mm² PV cable.
Advantages or Benefits
- More kWh per surface area thanks to high efficiency and bifaciality with rear-side gain (up to ~30% depending on albedo).
- Lower installed CAPEX: factory pallet with 36 units accelerates project execution.
- Longer lifespan and reliability due to dual-glass encapsulation and high-strength materials.
- Wide compatibility with 1500 V inverters and multi-input microinverters for flexible designs.
- Excellent thermal and mechanical performance in harsh environments (saline, ammonia, sand, high humidity).
Purpose or Applications
Designed for C&I self-consumption in industrial buildings, logistics centers, agribusiness, retail, and carports; also suitable for modular plants by pallets. Ideal for roofs with high albedo where the active rear side provides additional energy and improves return.
Technical Specifications
| Model | Trina Vertex S+ TSM-NEG19RC.20 (bifacial dual-glass) |
| Units per pallet | 36 modules |
| Power per module | 615 W (0~+5 W) |
| Total pallet power | 22.14 kWp |
| Module efficiency | 22.8% |
| Cells | 132 half-cut N-type i-TOPCon |
| Bifaciality / rear-gain | 80% ±5% / up to ~30% depending on albedo |
| Vmp / Imp (STC) | ≈ 49 V / ≈ 12.8 A |
| Voc / Isc (STC) | ≈ 49–50 V / ≈ 13 A |
| Max. system voltage / fuse | 1500 V DC / 35 A |
| Thermal coefficients | Pmax −0.29%/°C · Voc −0.24%/°C · Isc +0.04%/°C |
| Dimensions / weight (module) | 2382×1134×30 mm / 33.7 kg |
| Connections | MC4-EVO2 or TS4 Plus · 4 mm² cable · IP68 junction box |
| Mechanical loads | 5400 Pa (positive) / 2400 Pa (negative) |
| Warranties | 12 years product / 30 years power (degradation 1% + 0.4%/year) |
Compatibilities
Direct integration with three-phase and single-phase 1500 V inverters, multi-input microinverters, and 30 mm frame structures. Use of type 2 DC protections and combiner boxes for multiple strings is recommended.
The Pallet of 36 Trina 615W Bifacial Solar Panels NEG19RC.20 Vertex S+ combines maximum power density, robustness, and flawless logistics for high-performance C&I projects.
