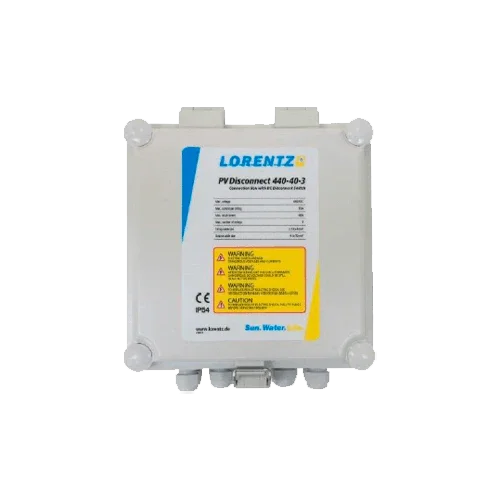

Lorentz PV Disconnect Protection 440-40-3 IP54 40A 3 strings

Product Description

The Lorentz PV Disconnect 440-40-3 is a DC protection box with integrated isolator, designed for professional solar installations with up to 3 parallel strings. It supports a maximum voltage of 440 VDC and up to 40 A total current. It is ideal for Lorentz pumping systems from PS2-150 to PS2-4000, and can integrate optional surge protection (SPD) to increase safety in rural, agricultural, or industrial environments.

Main Features

• Up to 3 strings with a maximum current of 15 A per string
• Maximum voltage: 440 VDC, total current up to 40 A
• Integrated DC switch-isolator in the enclosure
• IP54 protection against dust and splashes
• Compatible with SPD modules (MidNite Solar) depending on the controller
• Lightweight: only 1.6 kg without SPD, easy to mount on surfaces

Advantages or Benefits

• Centralized string disconnection for safe maintenance
• Compatible with all Lorentz PS2 systems (from 150 to 4000)
• Option for integrated surge protection in the same box
• Simple installation with professional PG and M16 cable glands
• Prepared to comply with CE regulations in demanding installations

Purpose or Applications

The PV Disconnect 440-40-3 is designed for small and medium-scale solar installations, with up to 3 photovoltaic strings connected in parallel. It is perfect for Lorentz pumping systems in wells, irrigation, livestock, or rural homes, where quick disconnection and the possibility of surge protection are required.

Technical Specifications

Compatibilities

This product is compatible with Lorentz systems: PS2-150, PS2-200, PS2-600, PS2-1200, PS2-1800, PS2-4000.

Surge Protection (optional)

• MNSPD-115 – for PS2-150 / PS2-200 (Ref. 19-002120)
• MNSPD-300 – for PS2-600 to PS2-1800 (Ref. 19-002130)
• MNSPD-600 – for PS2-4000 (Ref. 19-002140)

Lorentz PV Disconnect 440-40-3 is a robust and compact solution for solar installations that require efficient disconnection and enhanced protection in autonomous pumping projects.
