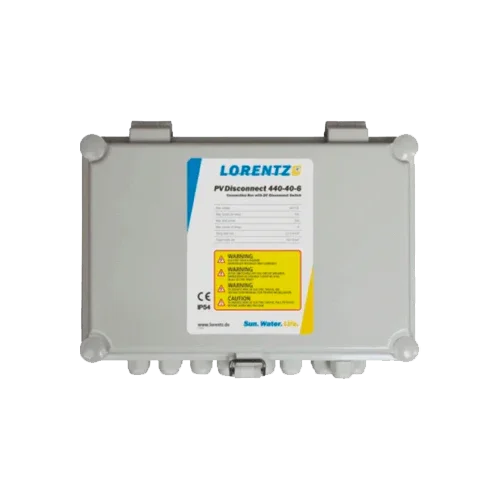

Lorentz PV Disconnect Protection 440-40-6 IP54 40A 6 strings

Product Description

The Lorentz PV Disconnect 440-40-6 is a solar protection box with integrated DC disconnect switch, designed to group and disconnect up to 6 photovoltaic strings in parallel. It supports a total current of 40 A at 440 VDC and allows optional integration of surge protection (SPD), making it a complete and safe solution for solar pumping installations between PS150 and PS2-4000. Its IP54 enclosure ensures reliable installation in protected outdoor environments.

Main Features

• Supports up to 6 strings with a maximum of 10 A per string
• Maximum total current: 40 A at 440 VDC
• Integrated DC disconnect switch in the box
• IP54 protection suitable for covered outdoor use
• Optional SPD (Surge Protection Device) for maximum safety
• Inputs with M16 and PG11 cable glands for professional wiring

Advantages or Benefits

• Centralized string disconnection for maintenance or emergencies
• Direct compatibility with Lorentz systems from PS150 to PS4000
• Expandable design with internal surge protection
• Improves electrical safety and reduces short-circuit risks
• Enables compliance with technical standards in professional solar projects

Purpose or Applications

The PV Disconnect 440-40-6 box is ideal for solar pumping installations in rural, agricultural, or industrial environments where Lorentz pumps of low to medium-high power are used. It allows efficient control and protection of multiple photovoltaic strings, improving system operability in sensitive environments or those exposed to storms.

Technical Specifications

Compatibilities

Compatible with Lorentz systems: PS150, PS200, PS600, PS1200, PS1800, PS2-4000.

Optional Surge Protection

Can be integrated with the following SPD modules:

• MNSPD-115 – for PS150 and PS200 (Ref. 19-002120)
• MNSPD-300 – for PS600 to PS1800 (Ref. 19-002130)
• MNSPD-600 – for PS2-4000 (Ref. 19-002140)

Lorentz PV Disconnect 440-40-6 is a professional solution for solar installations that require reliable DC grouping, disconnection, and protection. It improves your system’s safety and ensures regulatory compliance.
