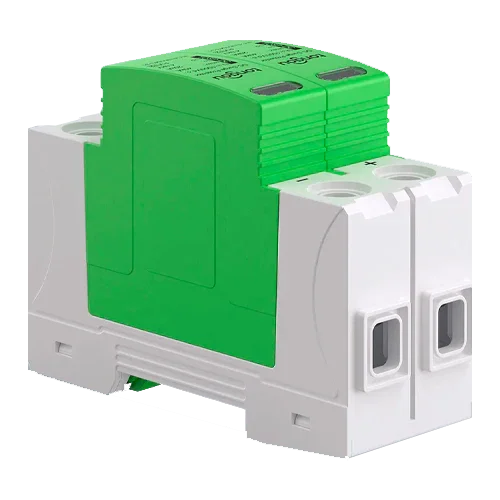

DC Surge Protector 1000V 2P Tongou TOSP 20KA-40KA

Modelo: TOSP 2P DC 1000V 20KA-40KA

Sku: TONGPRO039
Vendor: Tongou

€44,12 EUR

€30,89 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

DC Surge Protector 1000V 2P Tongou TOSP 20KA-40KA protects PV strings with pluggable cartridges, green/red window and response <25 ns. Type 2, In 20 kA / Imax 40 kA (8/20), IEC 61643-31 standard, DIN 35 mm mounting.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The DC 1000V 2P Tongou TOSP 20KA-40KA Surge Protector is a Type 2 photovoltaic SPD designed to protect direct current lines up to 1000 V DC against transient overvoltages caused by lightning and switching operations. It incorporates plug-in modules with status indication (green/red) for quick maintenance and offers an optional auxiliary contact for remote fault signaling. Its ultra-fast response and discharge capacity make it a reliable solution for string boxes, combiners, and DC inputs of inverters.

Main Features

U_cpv 1000 V DC; In 20 kA (8/20 μs wave) and Imax 40 kA (8/20 μs).
Typical residual voltage Up ≈ 4.0 kV (at 1000 V DC).
Response time < 25 ns; high efficiency against fast impulses.
Plug-in modules with status window and extraction key for safe replacement.
Mounting on 35 mm DIN rail; tightening torque approx. 2 N·m; recommended stripping 12 mm.
Operating temperature −40…+70 °C; IP20 in suitable enclosure.

Advantages or Benefits

Effective protection of panels, combiners, and inverters, extending system life.
Quick maintenance: replaceable cartridge without disconnecting wiring.
Greater control thanks to the green/red window and optional alarm contact.
Clean and compact installation on DIN rail, ideal for photovoltaic panels.
Compliance with IEC 61643-31 for PV DC applications, ensuring reliability.

Purpose or Applications

Use in photovoltaic strings, combiner boxes, and DC input of on-grid/hybrid inverters up to 1000 V DC. Recommended for residential, commercial, and self-consumption installations with roof or ground-mounted structures.

Technical Specifications

Configuration	2P (L+/L− to PE, Y scheme)
Maximum continuous voltage U_cpv	1000 V DC
Nominal discharge current In	20 kA (8/20 μs)
Maximum discharge current Imax	40 kA (8/20 μs)
Impulse I_imp	≈ 6.5 kA (10/350 μs)
Residual voltage Up	≈ 4.0 kV
Response time	< 25 ns
Operating temperature	−40…+70 °C; RH 30–90 %
Degree of protection	IP20 (indoors/enclosure)
Conductor cross-section	Recommended ≥ 6 mm² Cu to PE; terminals up to 25–35 mm²
Tightening torque	≈ 2 N·m
Mounting	35 mm DIN rail
Approx. dimensions	≈ 91 × 54 × 64 mm (w × h × d)
Standard	IEC 61643-31 (SPD PV Type 2)
Auxiliary contact (optional)	AC 250 V/0.5 A; DC 250 V/0.1 A; max. cable 1.5 mm

Compatibilities

Installable in modular enclosures and watertight boxes such as Schneider Kaedra (13979–13985). Compatible with GAVE DC PV boxes (STM11040P12, STM11025P15/2, STM11025P20/2, STM21025P15S/3, STM21025P15S/4), DC disconnectors, and string fuses. Use with professional wiring and terminals (e.g., ferrules and tubular terminals).

The DC 1000V 2P Tongou TOSP 20KA-40KA Surge Protector provides safety, easy maintenance, and certified performance to protect your photovoltaic field.
