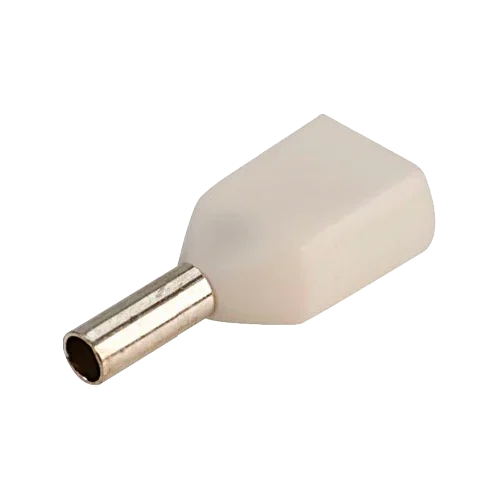

Double Hollow Insulated Ferrule Sofamel 0.5 mm² APF/D-0,50D White
Modelo: APF/D-0,50D Blanca- Sku: SOFAACC001
- Vendor: Sofamel
Specifications
Product Description
The Sofamel Double Insulated Hollow Ferrule 0.5 mm² APF/D-0,50D White is a professional terminal designed to consolidate two fine conductors into a single clean and secure connection. Its capillary tube design in electrolytic copper with tinned finish optimizes contact and conductivity, while the nylon (PA) cup ensures insulation, rigidity, and ease of insertion into terminals. It is the ideal option for electrical panels, automation, and control wiring where order, reliability, and an industrial-grade finish are required.
Main Features
- Nominal section: 0.5 mm² (twin wire ferrule for two fine conductors).
- Tube material: electrolytic copper tinned for lower contact resistance and anti-corrosion protection.
- Insulation: high mechanical strength injected nylon PA cup.
- Color code: white for immediate identification in workshop and installation.
- Approximate dimensions: L ≈ 15.0 mm; L1 ≈ 8.0 mm; D1 ≈ 4.7 mm; D2 ≈ 2.5 mm; Øi ≈ 1.5 mm.
- Stable crimping that prevents loose strands and improves repeatability in screw and spring terminals.
Advantages or Benefits
- Safer and more durable connection compared to bare or poorly crimped wires.
- Faster and more organized assembly in terminal strips and DIN terminals, reducing errors and rework.
- Better conductivity and less heating thanks to tinned copper.
- Color identification to speed up maintenance and diagnostics.
- Professional finish that meets the requirements of panel building and automation.
Purpose or Applications
Suitable for residential and commercial electrical panels, industrial cabinets, automation, PLC/SCADA, control wiring, instrumentation, home automation, and any installation where it is necessary to group two fine 0.5 mm² conductors into a single reliable connection.
Technical Specifications
| Model | APF/D-0,50D |
| Type | Double insulated hollow ferrule (twin wire ferrule) |
| Section | 0.5 mm² |
| Color | White |
| Tube material | Tinned electrolytic copper |
| Insulation material | Injected nylon (PA) |
| Total length (L) | ≈ 15.0 mm |
| Ferrule length (L1) | ≈ 8.0 mm |
| Max. housing diameter (D1) | ≈ 4.7 mm |
| Tube diameter (D2) | ≈ 2.5 mm |
| Inner diameter (Øi) | ≈ 1.5 mm |
| Finish | Tinned for better contact and corrosion resistance |
Compatibilities
Compatible with crimping pliers for ferrules (square or eyelet profile, depending on the tool), standard screw and spring terminals, and DIN terminal strips. For fine stranded conductors of 0.5 mm².
The Sofamel Double Insulated Hollow Ferrule 0.5 mm² APF/D-0,50D White provides safety, organization, and superior electrical performance in any panel or board where contact quality is critical.
