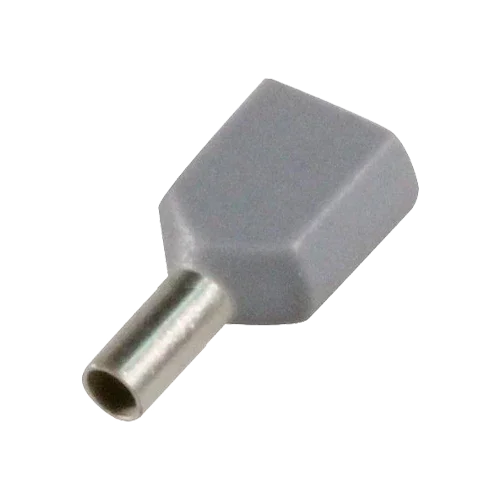

Double Hollow Insulated Ferrule Sofamel 0.75 mm² APF/D-0.75D Grey
Modelo: APF/D-0,75D Gris- Sku: SOFAACC002
- Vendor: Sofamel
Specifications
Product Description
The Sofamel Double Hollow Insulated Ferrule 0.75 mm² APF/D-0.75D Grey is designed to join two fine conductors in a single compact, tidy, and highly reliable termination. Its electrolytic copper sleeve with tin plating offers excellent conductivity and corrosion resistance, while the nylon (PA) insulating skirt facilitates insertion into terminals and ensures stable cable guidance. It is a professional solution for electrical panels and switchboards seeking uniformity, safety, and reduced assembly times.
Main Features
- Nominal section: 0.75 mm² (double conductor).
- Capillary tube in tinned copper for optimized electrical contact.
- Robust insulation in injected nylon PA, durable and precise.
- Colour code: grey for immediate gauge identification.
- Approximate dimensions: L ≈ 15.0 mm; L1 ≈ 8.0 mm; D1 ≈ 5.0 mm; D2 ≈ 2.8 mm; Øi ≈ 1.8 mm.
- Consistent crimping that prevents loose strands and ensures repeatability in terminals.
Advantages or Benefits
- Safer and more stable connections that improve panel reliability.
- Quick assembly and clean finish: simplifies wiring and maintenance.
- Better current transfer and lower voltage drop due to tinned copper.
- Colour identification that speeds up audits, inspections, and future expansions.
- Longer service life of the terminal-cable assembly thanks to uniform crimping.
Purpose or Applications
Especially useful in residential, commercial, and industrial panels, automation, control wiring, sensors, and instrumentation, where it is necessary to group two 0.75 mm² conductors in a single reliable and aesthetic connection.
Technical Specifications
| Model | APF/D-0.75D |
| Type | Double hollow insulated ferrule (twin wire ferrule) |
| Section | 0.75 mm² |
| Colour | Grey |
| Tube material | Tinned electrolytic copper |
| Insulation material | Injected nylon (PA) |
| Total length (L) | ≈ 15.0 mm |
| Sleeve length (L1) | ≈ 8.0 mm |
| Max. housing diameter (D1) | ≈ 5.0 mm |
| Tube diameter (D2) | ≈ 2.8 mm |
| Inner diameter (Øi) | ≈ 1.8 mm |
| Finish | Tinned for better contact and oxidation resistance |
Compatibilities
Compatible with crimping pliers specific for ferrules (square/hexagonal profiles depending on the tool), screw and spring terminals, DIN terminal blocks, and control connectors. For fine stranded conductors of 0.75 mm².
The Sofamel Double Hollow Insulated Ferrule 0.75 mm² APF/D-0.75D Grey provides reliable crimping, order, and excellent electrical performance in installations where contact quality is a priority.
