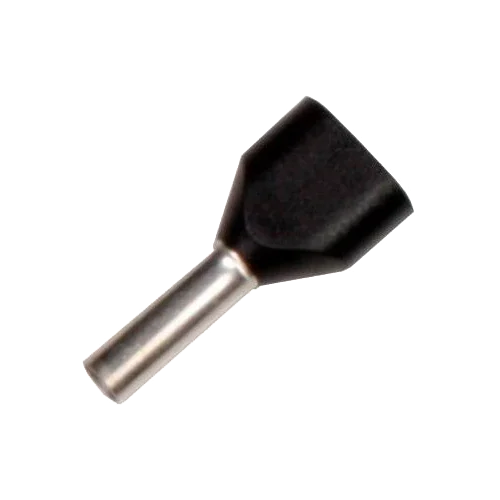

Double Hollow Insulated Ferrule Sofamel 1.5 mm² APF/D-1,50D Black
Modelo: APF/D-1,50D Negra- Sku: SOFAACC004
- Vendor: Sofamel
Specifications
Product Description
The Sofamel 1.5 mm² APF/D-1,50D Black Insulated Twin Wire Ferrule provides a professional termination when two 1.5 mm² stranded conductors need to be joined at a single connection point. The electrolytic copper tin-plated sleeve offers excellent conductivity and protection against oxidation, while the nylon (PA) cup guides the wires, improves insulation, and facilitates assembly in screw or spring terminals. Designed for electrical panels, automation, and control wiring, it delivers reliability, organization, and a flawless appearance inside the enclosure.
Main Features
- Nominal section: 1.5 mm² (twin conductor).
- Tin-plated copper sleeve with low contact resistance and high stability.
- Injected nylon PA insulation: robust, precise, and easy to insert.
- Color code: black, useful for identifying gauge and function in wiring.
- Firm crimping prevents loose strands, intermittent faults, and overheating.
- Suitable for standard terminals, DIN terminal blocks, control and distribution equipment.
Advantages or Benefits
- Safer and more durable connections compared to terminations without ferrules.
- Time savings in assembly and maintenance due to stable conductor guidance.
- Better electrical performance: lower voltage drop and less heating.
- Panel organization and traceability through color coding.
- Professional appearance that meets industry and panel standards.
Purpose or Applications
Recommended for residential and commercial panels, industrial enclosures, process control, instrumentation, home automation, and telecommunications. Especially suitable when two 1.5 mm² cables need to be grouped in device terminals, contactors, relays, PLCs, and terminal blocks.
Technical Specifications
| Model | APF/D-1,50D |
| Type | Insulated twin wire ferrule |
| Section | 1.5 mm² |
| Color | Black |
| Tubing material | Electrolytic tin-plated copper |
| Insulation material | Injected nylon (PA) |
| Total length (L) | ≈ 16–18 mm |
| Sleeve length (L1) | ≈ 9–10 mm |
| Max. skirt diameter (D1) | ≈ 5.6–6.0 mm |
| Tubing diameter (D2) | ≈ 3.3–3.5 mm |
| Inner diameter (Øi) | ≈ 2.2–2.4 mm |
| Finish | Anti-corrosion tin-plating, optimized contact surface |
Compatibilities
Works with crimping pliers for ferrules (square/hexagonal profile depending on tool). Compatible with screw and spring terminals, DIN terminal blocks, and control connectors. For fine stranded conductors of 1.5 mm².
The Sofamel 1.5 mm² APF/D-1,50D Black Insulated Twin Wire Ferrule ensures clean and stable connections, improving the reliability, organization, and efficiency of any electrical installation.
