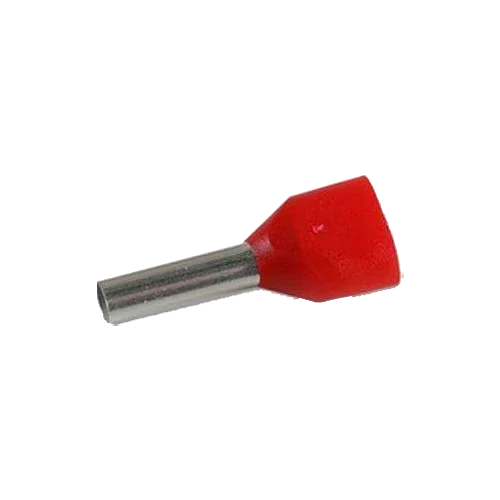

Double Hollow Insulated Ferrule Sofamel 10 mm² APF/D-10,00D Red

Product Description

The Sofamel 10 mm² APF/D-10,00D Red Insulated Double Hollow Ferrule is designed to terminate two 10 mm² stranded conductors in a single, compact, and extremely reliable connection. The electrolytic copper sleeve provides high conductivity, while its tinned finish reduces contact resistance and protects against oxidation, even in demanding environments. The nylon (PA) skirt guides the wire bundle, prevents damage from tightening, and facilitates precise insertion into screw or spring terminals. It is the professional choice in panel building and automation when robust and repeatable connections with a flawless finish are required.

Main Features

• Nominal section: 10 mm² per conductor (double ferrule/twin wire ferrule).
• Tinned copper capillary tube: low resistivity and anti-corrosion protection.
• Injected nylon PA insulation: rigidity, insulation, and reliable conductor guidance.
• Color code: red for instant gauge identification.
• Consistent crimping that minimizes hot spots and prevents loose strands.
• Approximate dimensions: L ≈ 22–24 mm; L1 ≈ 14–15 mm; D1 ≈ 9.0–9.8 mm; D2 ≈ 5.6–6.0 mm; Øi ≈ 4.3–4.6 mm.

Advantages or Benefits

• Highly reliable electrical and mechanical connection in higher current applications.
• Improves panel efficiency by reducing voltage drops due to contact.
• Faster and tidier assembly standard, with a lower rate of rework.
• Color identification simplifies inspections and maintenance.
• Professional finish that meets best practices in panel building and industrial control.

Purpose or Applications

Suitable for high-demand residential, tertiary, and industrial panels; distribution systems, motor control, drives, contactors and protection; instrumentation and PLC. Especially recommended when it is necessary to bring two 10 mm² cables to the same terminal while maintaining the electrical and mechanical integrity of the connection.

Technical Specifications

Compatibilities

Compatible with crimping pliers for ferrules (square/hexagonal profile, depending on the tool), standard screw and spring terminals, DIN terminal blocks, and industrial connectors. Suitable for fine stranded 10 mm² conductors.

The Sofamel 10 mm² APF/D-10,00D Red Insulated Double Hollow Ferrule offers safety, organization, and superior electrical performance, raising the overall quality of any professional electrical installation.
