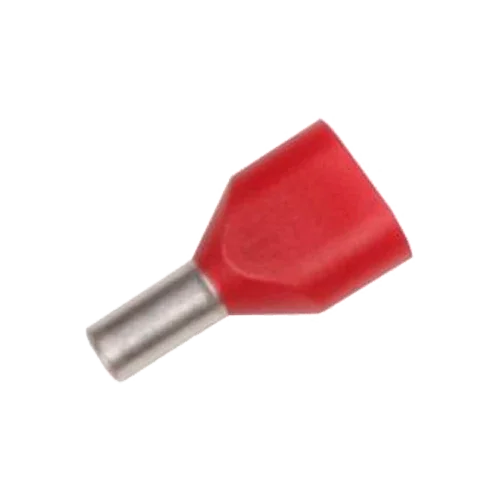

Insulated Double Hollow Ferrule Sofamel 1 mm² APF/D-1,00D Red
Modelo: APF/D-1,00D Roja- Sku: SOFAACC003
- Vendor: Sofamel
Specifications
Product Description
The Sofamel Double Insulated Hollow Ferrule 1 mm² APF/D-1,00D Red is designed to terminate two stranded conductors of 1 mm² in a single compact connection, ensuring order, safety, and excellent conductivity. Its tinned electrolytic copper sleeve reduces contact resistance and protects against corrosion, while the PA nylon cup provides rigidity, insulation, and perfect cable guidance towards the terminal. It is the professional solution for panels, automation, and control wiring where reliability and finish are as important as productivity.
Main Features
- Nominal section: 1 mm² (twin wire ferrule for double conductor).
- Capillary tube in tinned copper for optimal and stable electrical contact.
- Insulation in injected PA nylon: high resistance and easy insertion into terminals.
- Color code: red for immediate visual identification of the gauge.
- Uniform crimping prevents loose strands and minimizes overheating due to poor contact.
- Compatible with screw and spring terminals, DIN terminal blocks, and automation equipment.
Advantages or Benefits
- Safer connection than bare wires: improves panel reliability and reduces failures.
- Faster and repeatable assembly; facilitates maintenance and future expansions.
- Lower voltage drop thanks to tinned copper and consolidated contact surface.
- Color identification speeds up inspections, audits, and field work.
- Professional and clean finish that adds value to panel work and premium installations.
Purpose or Applications
Ideal for residential and commercial panels, industrial cabinets, motor control, sensors, PLC/SCADA, instrumentation, home automation, and telecom, when it is necessary to join two 1 mm² conductors in a single reliable and aesthetic termination.
Technical Specifications
| Model | APF/D-1,00D |
| Type | Double insulated hollow ferrule (twin wire ferrule) |
| Section | 1 mm² |
| Color | Red |
| Tube material | Tinned electrolytic copper |
| Insulation material | Injected nylon (PA) |
| Total length (L) | ≈ 15–16 mm |
| Sleeve length (L1) | ≈ 8–9 mm |
| Max. skirt diameter (D1) | ≈ 5.2–5.5 mm |
| Tube diameter (D2) | ≈ 3.0 mm |
| Inner diameter (Øi) | ≈ 2.0 mm |
| Finish | Anti-corrosion tinning, low contact resistance |
Compatibilities
Compatible with crimping pliers for ferrules (square/hexagonal profile depending on tool). Use in standard screw and spring terminals, DIN terminal blocks, and control connectors. Suitable for fine stranded conductors of 1 mm².
The Sofamel Double Insulated Hollow Ferrule 1 mm² APF/D-1,00D Red enhances the quality of every connection, providing safety, order, and superior electrical performance in demanding installations.
