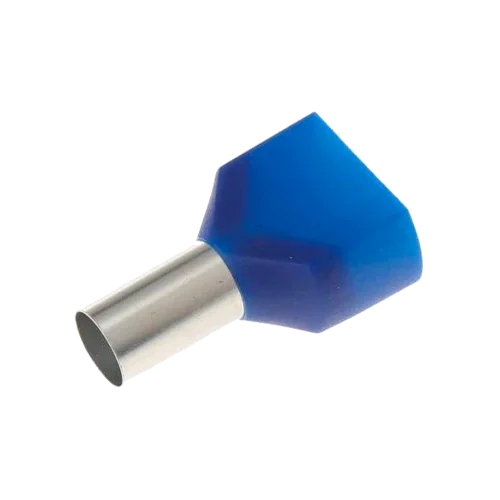

Double Hollow Insulated Ferrule Sofamel 2.5 mm² APF/D-2,50D Blue
Modelo: APF/D-2,50D Azul- Sku: SOFAACC005
- Vendor: Sofamel
Specifications
Product Description
The Sofamel 2.5 mm² APF/D-2,50D Blue Insulated Double Hollow Ferrule allows you to terminate two 2.5 mm² stranded conductors in a single, compact, safe, and standardized connection. Its tinned electrolytic copper sleeve provides a stable, low-resistance contact surface, while the PA nylon skirt ensures insulation, precise guidance of the wire bundle, and comfortable insertion into screw or spring terminals. It is an indispensable consumable for panel builders and automation technicians seeking order, reliability, and repeatability in their electrical panels and control installations.
Main Features
- Nominal section: 2.5 mm² per conductor (twin wire ferrule).
- Tinned copper sleeve for corrosion resistance and lower contact resistance.
- Insulation made of injected PA nylon, rigid and impact-resistant.
- Color code: blue for easy gauge identification at a glance.
- Uniform crimping prevents loose strands and hot spots at terminals.
- Approximate dimensions: L ≈ 17–18 mm; L1 ≈ 10–11 mm; D1 ≈ 6.2–6.6 mm; D2 ≈ 3.8–4.1 mm; Øi ≈ 2.7–2.9 mm.
Advantages or Benefits
- Superior electrical safety compared to terminations without ferrules.
- Lower voltage drop and less heating thanks to tinned copper.
- Fast and professional assembly: improves production and maintenance times.
- Color identification speeds up inspections and future expansions.
- Clean and consistent finish that enhances the perceived quality of the panel.
Purpose or Applications
Recommended for residential, commercial, and industrial panels; automation cabinets; control, instrumentation, and PLC wiring; connections to contactors, relays, distribution terminals, and light power equipment. Especially useful when two 2.5 mm² cables need to be brought to the same connection point without compromising reliability.
Technical Specifications
| Model | APF/D-2,50D |
| Type | Insulated double hollow ferrule (twin wire ferrule) |
| Section | 2.5 mm² |
| Color | Blue |
| Tubing material | Tinned electrolytic copper |
| Insulation material | Injected nylon (PA) |
| Total length (L) | ≈ 17–18 mm |
| Sleeve length (L1) | ≈ 10–11 mm |
| Max. skirt diameter (D1) | ≈ 6.2–6.6 mm |
| Tubing diameter (D2) | ≈ 3.8–4.1 mm |
| Inner diameter (Øi) | ≈ 2.7–2.9 mm |
| Finish | Anti-corrosion tinning and low resistivity |
Compatibilities
Works with crimping pliers for ferrules (square or hexagonal profile, depending on the tool), standard screw and spring terminals, and DIN terminal blocks. Suitable for fine stranded 2.5 mm² conductors.
The Sofamel 2.5 mm² APF/D-2,50D Blue Insulated Double Hollow Ferrule adds safety, order, and sustained electrical performance to any installation where contact quality is a priority.
