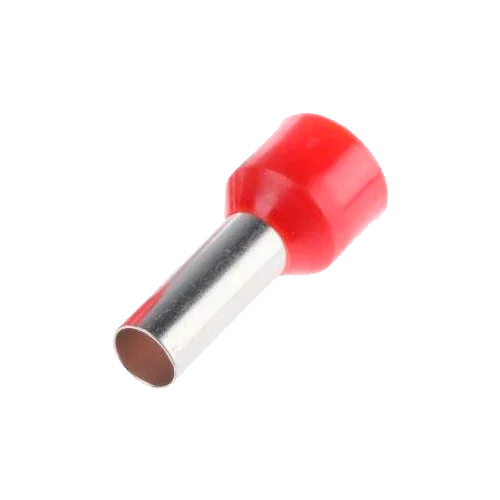

Insulated Hollow Ferrule Sofamel 1 mm² APF-1,00/8 Red
Modelo: APF-1,00/8 Roja- Sku: SOFAACC012
- Vendor: Sofamel
Specifications
Product Description
The Sofamel 1 mm² APF-1,00/8 Red Insulated Hollow Ferrule is a professional terminal for finishing 1 mm² stranded conductors with a clean, stable, and secure connection. The electrolytic copper sleeve with tinned finish improves conductivity and protects against oxidation, reducing contact resistance in screw or spring terminals. Its nylon (PA) skirt provides dielectric rigidity, guides the wire bundle, and enables precise insertion without damage. Thanks to its red color code, gauge identification is immediate, streamlining assembly, maintenance, and audits in electrical panels.
Main Features
- Nominal section: 1 mm² for fine stranded conductor.
- Capillary tube made of tinned copper for excellent conductivity and corrosion resistance.
- Injected nylon PA insulation: robust, precise, and easy to insert.
- Format /8: sleeve length L1 = 8 mm for reliable crimping.
- Color code: red for quick gauge identification.
- Uniform crimping prevents loose wires, micro-arcs, and hot spots.
Advantages or Benefits
- Safer and more durable connections than with stripped or poorly crimped wires.
- Lower voltage drop and greater thermal stability due to optimized metal contact.
- Faster and neater assembly in panels, reducing rework.
- Visual color identification simplifies inspections and future expansions.
- Professional finish enhances the perceived quality of the electrical panel.
Purpose or Applications
Ideal for residential, commercial, and industrial panels, automation, control wiring, PLC/SCADA, instrumentation, and home automation. Recommended when terminating 1 mm² conductors in modular terminals, DIN rail blocks, relays, contactors, power supplies, and electronic equipment.
Technical Specifications
| Model | APF-1,00/8 |
| Type | Insulated hollow ferrule (wire end ferrule) |
| Section | 1 mm² |
| Color | Red |
| Tube material | Tinned electrolytic copper |
| Insulation material | Injected nylon (PA) |
| Sleeve length (L1) | 8 mm |
| Total length (L) | ≈ 15–17 mm |
| Inner diameter (Øi) | Suitable for 1 mm² stranded cable |
| Recommended crimping | Square or hexagonal profile (depending on tool) |
| Finish | Anti-corrosion tinning, low contact resistance |
Compatibilities
Compatible with crimping pliers for ferrules, standard screw and spring terminals, DIN rail blocks, and common control connectors in panel assembly.
The Sofamel 1 mm² APF-1,00/8 Red Insulated Hollow Ferrule ensures reliable and durable connections, providing order and superior electrical performance in professional installations.
