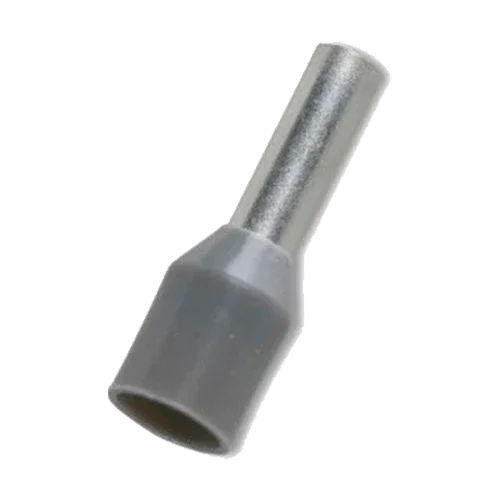

Sofamel Insulated Hollow Ferrule 2.5 mm² APF-2,50/8 Grey
Modelo: APF-2,50/8 Gris- Sku: SOFAACC014
- Vendor: Sofamel
Specifications
Product Description
The Puntera Hueca Aislada Sofamel 2.5 mm² APF-2,50/8 Grey is a professional terminal designed to finish 2.5 mm² stranded conductors with a clean, stable, and durable connection. Its electrolytic copper capillary tube with tinned finish maximizes the contact surface, reduces resistance at the joint, and protects against oxidation, even in demanding work environments. The nylon (PA) skirt guides the wire bundle, provides dielectric rigidity, and facilitates precise insertion into screw or spring terminals, preventing pinching and damage to the conductor. Thanks to the grey color coding, the technician can immediately identify the gauge, speeding up assembly, inspections, and maintenance in electrical panels.
Main Features
- Nominal section: 2.5 mm² for stranded conductor.
- Tinned copper tube ensures low resistivity and anti-corrosion protection.
- Insulation in injected nylon PA, rigid and precise for cable guidance.
- Format /8: ferrule length L1 = 8 mm for reliable crimping.
- Color code: grey for immediate visual identification.
- Uniform crimping prevents loose wires, micro-arcs, and hot spots.
Advantages or Benefits
- Safer electrical and mechanical connection than with bare wires or improvised terminals.
- Lower voltage drop and better thermal stability thanks to the large metallic contact area.
- Faster, tidier, and repeatable assembly; reduces errors and rework in panel building.
- Facilitates inspections and future expansions through color coding.
- Professional finish that enhances the perceived quality of the electrical panel.
Purpose or Applications
Suitable for residential, commercial, and industrial panels; automation cabinets, control wiring, relays, contactors, power supplies, PLC/SCADA, instrumentation, and home automation. Especially useful for terminating 2.5 mm² conductors in modular terminals and DIN rail blocks, ensuring electrical integrity and cable aesthetics.
Technical Specifications
| Model | APF-2,50/8 |
| Type | Puntera hueca aislada (wire end ferrule) |
| Nominal section | 2.5 mm² |
| Color | Grey |
| Tube material | Electrolytic copper with tinning |
| Insulation material | Injected nylon (PA) |
| Ferrule length (L1) | 8 mm |
| Total length (L) | ≈ 16–18 mm |
| Inner diameter (Øi) | Suitable for 2.5 mm² stranded conductor |
| Crimping shape | Square or hexagonal (depending on tool) |
| Finish | Anti-corrosion tinning, low contact resistance |
Compatibilities
Compatible with crimping pliers for ferrules, standard screw and spring terminals, DIN rail blocks, and control connectors. Suitable for fine stranded conductors of 2.5 mm².
The Puntera Hueca Aislada Sofamel 2.5 mm² APF-2,50/8 Grey provides safety, organization, and superior electrical performance, making it a key consumable for demanding professional installations.
