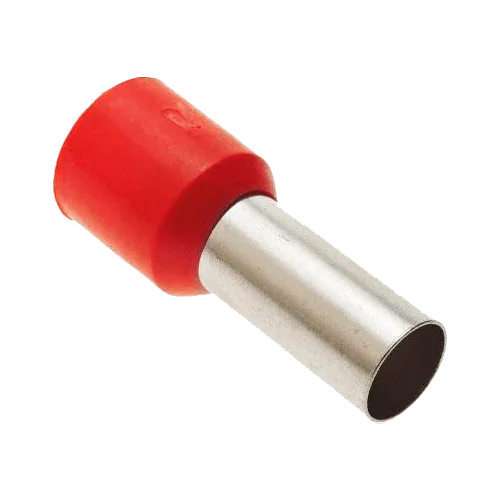

Insulated Hollow Ferrule Sofamel 35 mm² APF-35,00/16 Red

Product Description

The Sofamel Insulated Hollow Ferrule 35 mm² APF-35,00/16 Red is designed to terminate large-section stranded conductors with a professional finish that ensures mechanical and electrical stability even in demanding continuous service. Its capillary tube made of electrolytic copper with a tinned finish offers excellent conductivity and corrosion resistance, reducing contact resistance and heating at the connection point. The insulating nylon (PA) skirt with L1 16 mm (format /16) guides the wire bundle, protects the crimp from vibrations, and facilitates deep insertions into power terminals. The red color allows for quick gauge identification, speeding up assembly, inspections, and maintenance in electrical panels and switchboards.

Main Features

• Nominal section: 35 mm² for high-current stranded conductor.
• Tinned copper tube for low resistivity and anti-corrosion protection.
• Injected nylon PA insulation: high dielectric strength and mechanical resistance.
• Extended ferrule length: L1 = 16 mm (format /16) for deep terminals.
• Color code: red for immediate visual identification.
• Uniform crimping prevents loose wires, micro-arcs, and hot spots.

Advantages or Benefits

• Very stable electrical and mechanical connection in high-demand applications.
• Lower voltage drop and better thermal stability due to optimized metallic contact.
• Faster and standardized assembly; reduces errors and downtime.
• Improves cable organization and traceability thanks to color coding.
• Professional finish that enhances the perceived quality of the electrical panel.

Purpose or Applications

Suitable for distribution and power panels, industrial machinery, frequency converters, contactors and distribution bars, photovoltaic and storage systems, UPS, chargers, and applications where 35 mm² conductors need to be terminated in power terminals.

Technical Specifications

Compatibilities

Compatible with crimping pliers and dies for large-section ferrules, industrial screw or spring terminals, DIN terminal blocks, and power connectors.

The Sofamel Insulated Hollow Ferrule 35 mm² APF-35,00/16 Red provides safety, organization, and superior electrical performance in professional installations subjected to high currents and continuous service.
