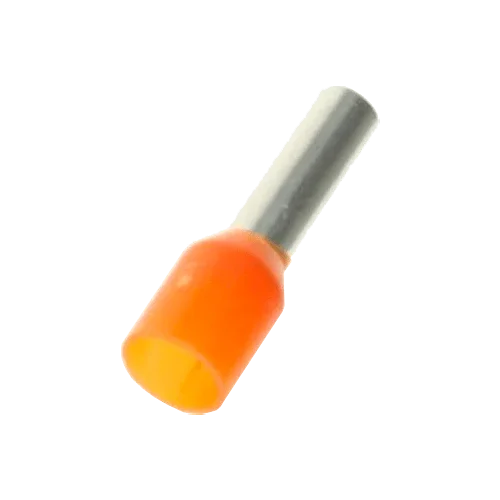

Insulated Hollow Ferrule Sofamel 4 mm² APF-4,00/10 Orange
Modelo: APF-4,00/10 Naranja- Sku: SOFAACC015
- Vendor: Sofamel
Specifications
Product Description
The Sofamel Insulated Hollow Ferrule 4 mm² APF-4,00/10 Orange is designed to terminate 4 mm² stranded conductors with a reliable, low-resistance connection and excellent durability. The electrolytic copper sleeve with tin plating maximizes conductivity and protects against oxidation, while the nylon (PA) skirt with extended sleeve length /10 (10 mm) improves wire bundle guidance and crimping stability, especially useful in deeper terminals or equipment with higher mechanical demands. The orange color coding allows for immediate gauge identification, speeding up assembly, inspections, and maintenance in electrical panels and control cabinets.
Main Features
- Nominal section: 4 mm² for stranded conductor.
- Capillary tube made of tinned copper offering low resistivity and anti-corrosion protection.
- Insulation in injected nylon PA for precise guidance and dielectric insulation.
- Format /10: L1 = 10 mm for deeper and more stable crimping.
- Color code: orange with immediate visual identification.
- Uniform crimping prevents loose strands, micro-arcs, and overheating.
Advantages or Benefits
- Consistent electrical connections in light power and control applications.
- Lower voltage drop and longer service life of the joint due to optimized contact.
- Agile and standardized assembly; reduces errors and rework in panel building.
- Facilitates inspections and future expansions thanks to color coding.
- Professional finish that improves the order and aesthetics of the panel.
Purpose or Applications
Suitable for advanced residential, commercial, and industrial panels; automation, distribution and control, connections to contactors, relays, modular terminals, power supplies, drives, and PLCs. Especially recommended when terminating 4 mm² conductors in deep terminals or where high mechanical demand is required.
Technical Specifications
| Model | APF-4,00/10 |
| Type | Insulated hollow ferrule (wire end ferrule) |
| Nominal section | 4 mm² |
| Color | Orange |
| Sleeve material | Electrolytic copper with tin plating |
| Insulation material | Injected nylon (PA) |
| Sleeve length (L1) | 10 mm |
| Total length (L) | ≈ 18–20 mm |
| Inner diameter (Øi) | Suitable for 4 mm² stranded conductor |
| Recommended crimping | Square or hexagonal profile (depending on tool) |
| Finish | Anti-corrosion tin plating, low contact resistance |
Compatibilities
Works with crimping pliers for ferrules, standard screw and spring terminals, DIN terminal blocks, and control connectors. Suitable for 4 mm² stranded conductors.
The Sofamel Insulated Hollow Ferrule 4 mm² APF-4,00/10 Orange offers safety, organization, and superior electrical performance, ensuring professional terminations in installations where contact quality is a priority.
