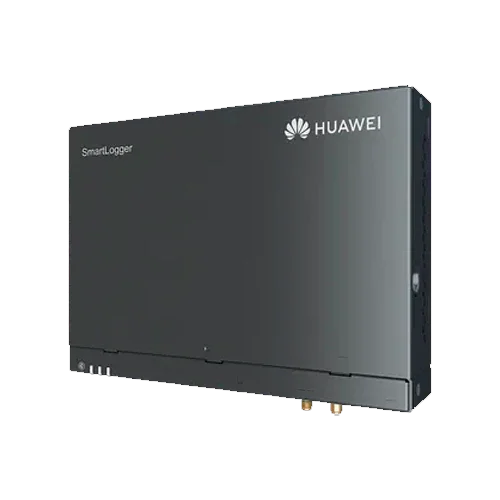

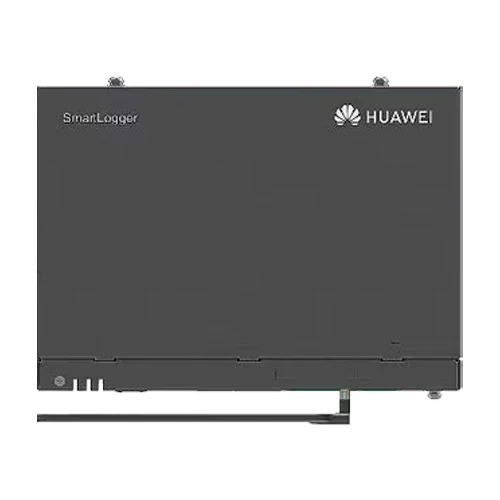

Huawei Smart Logger 3000B02 Recorder for up to 150 inverters
Modelo: Smart Logger 3000B02- Sku: HUAWACC012
- Vendor: Huawei
Specifications
Product Description
The Huawei Smart Logger 3000B02 Recorder is an advanced management unit designed to monitor, control, and configure up to 150 Huawei solar inverters, ideal for industrial, commercial, or large self-consumption solar plants. This logger allows the integration of additional devices such as energy meters, environmental sensors, or SCADA systems through multiple industrial protocols. Thanks to its communication via RS485, Ethernet, MBUS, and SFP, it adapts to demanding environments with redundancy, high capacity, and ease of integration.
Main Features
- Simultaneous management of up to 150 inverters and up to 200 devices in total
- Interfaces: RS485 x3, Ethernet WAN/LAN, SFP x2, MBUS, USB 2.0
- Supported protocols: Modbus TCP/RTU, IEC 60870-5-103/104, DL/T645
- Flexible power supply: 100–240 V AC or 24 V DC
- Embedded web and WLAN app for quick configuration
- Integrated surge protection (lightning)
Advantages or Benefits
- Centralizes the management of large Huawei solar installations
- Enables dynamic power control, alarms, and production
- Facilitates integration with sensors, SCADA, and solar trackers
- Optimizes remote monitoring and reduces operating costs
- Ideal for zero feed-in, smart self-consumption, and aggregators
Purpose or Applications
The Huawei Smart Logger 3000B02 is essential in large-scale commercial, industrial, or residential solar plants that require advanced supervision. It is used in systems with multiple SUN2000 inverters, both grid-connected and hybrid, and also allows control of grid meters, environmental sensors, and configurations with zero feed-in or integration into smart grids.
Technical Specifications
| Model | SmartLogger3000B02 |
| Max. manageable inverters | 150 |
| Max. manageable devices | 200 |
| Interfaces | RS485 x3, WAN x1, LAN x1, SFP x2, MBUS x1, USB, AI x4, DI x4, DO x2 |
| Protocols | Modbus TCP/RTU, IEC 60870-5-103/104, DL/T645 |
| Power supply | 100–240 V AC or 24 V DC |
| Consumption | 9 W typical, 15 W maximum |
| Protection | Surge protection included, IP20 |
| Dimensions | 225 × 160 × 44 mm |
| Mounting | Wall, DIN rail, desktop, or on SmartACU2000D |
Compatibilities
This product is compatible with:
- All Huawei SUN2000 inverters, from 3KTL-M1 to 185KTL-H1
- Huawei LUNA2000 batteries
- Huawei DTSU666-H meters and other Modbus meters
- Meteorological sensors, solar trackers, SCADA
Huawei Smart Logger 3000B02 Recorder is a robust and scalable solution for intelligent control of large solar installations. It ensures connectivity, efficiency, and full compatibility in industrial or commercial environments.
