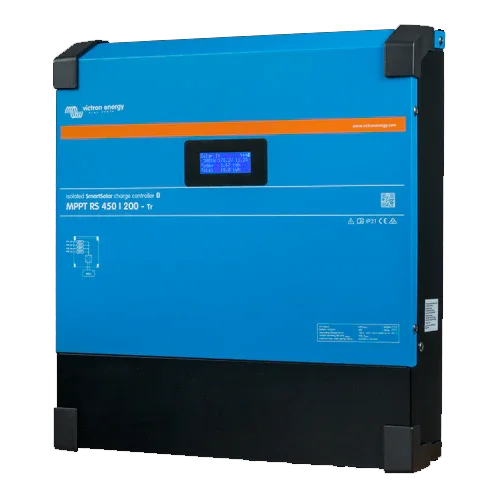

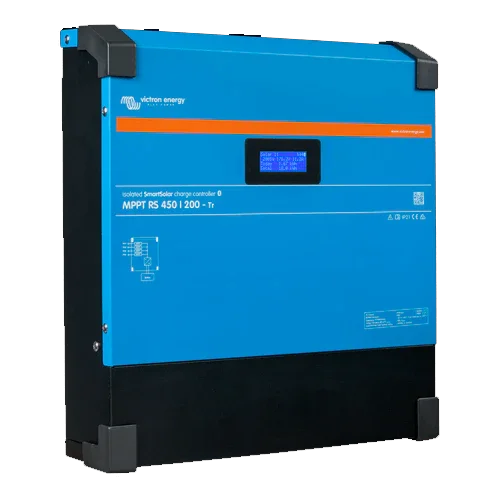

MPPT Charge Controller Victron RS SmartSolar 450/200-MC4 VE.Can 48V 200A Isolated
Modelo: RS SmartSolar 450/200-MC4 VE.Can- Sku: VICTREG043
- Vendor: Victron
Specifications
Product Description
The Victron RS SmartSolar 450/200-MC4 is the most powerful isolated MPPT controller in the RS range for 48 V batteries. It features 4 independent MPPT trackers with PV input up to 450 V, delivers 200 A charging current, and reaches 11.52 kW of power at 57.6 V. Its VE.Can, VE.Direct, and Bluetooth connectivity allows integration with GX devices, real-time monitoring, remote updates, and advanced settings via VictronConnect. Designed for large systems, it combines electrical safety with PV insulation monitoring, high efficiency, and scalability through parallel operation.
Main Features
- 4 independent MPPTs for multiple strings and large PV arrays.
- MPPT window of 65–450 V with startup at 120 V and 450 V max PV Voc.
- 200 A at 48 V and up to 11.52 kW total charging power (at 57.6 V).
- MC4 connectors per MPPT, 16 A operational and 20 A Isc per tracker.
- Galvanic isolation PV-battery and protections: reverse polarity, short circuit, and overtemperature.
- VE.Can for parallel operation (up to 25 units) and charge phase synchronization.
Advantages or Benefits
- Maximum design flexibility: four trackers allow grouping strings by orientation, shading, or technology.
- Superior productivity: ultra-fast MPPT and high output power for large-capacity battery banks.
- Safe operation: monitored PV insulation and alarms via GX/VRM device.
- Comprehensive management: 30-day history per MPPT, programmable relay, and I/O inputs for automation.
- Professional scaling: modular growth via VE.Can, maintaining stability and efficiency.
Purpose or Applications
Aimed at high-power photovoltaic installations in premium residential, commercial/industrial, microgrids, agriculture with storage, telecom, and critical applications where service continuity, remote management, and the balance between safety and performance are priorities.
Technical Specifications
| Type | Isolated MPPT Charge Controller |
| Battery voltage | 48 V (programmable range 36–60 V) |
| Charging current | 200 A |
| Max charging power | 11.52 kW (at 57.6 V) |
| MPPT / inputs | 4 independent MPPTs / 1 MC4 pair per MPPT |
| MPPT range | 65–450 V |
| Max PV Voc | 450 V |
| Max Isc per MPPT | 20 A (16 A operational) |
| Efficiency | 96 % |
| Self-consumption | 15 mA |
| Communications | Bluetooth, VE.Direct, VE.Can |
| VE.Can parallel | Up to 25 units |
| Protection | PV reverse polarity, output short circuit, overtemperature |
| Programmable relay | Yes (alarm, generator, etc.) |
| IP rating | IP21 |
| Operating temperature | -40…+60 °C (ventilated) |
| Dimensions | 487×434×146 mm |
| Weight | 13.7 kg |
| Battery connection | 4 M8 bolts (2+ / 2–) |
Compatibilities
Integration with Cerbo GX and other GX devices for VRM portal; compatible with GlobalLink 520 for 4G connectivity; supports remote input “Charge Permission” (smallBMS) and automation via programmable relay. Recommended professional accessories: VE.Can/VE.Direct cables, DC/PV protections, suitable disconnectors and fuses.
Victron RS SmartSolar 450/200-MC4 is the ultimate option for large-scale photovoltaic projects requiring high charging power, multi-string design, and advanced remote monitoring.
