Sale

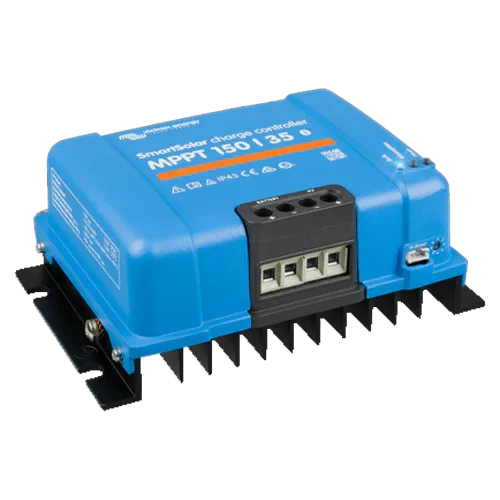

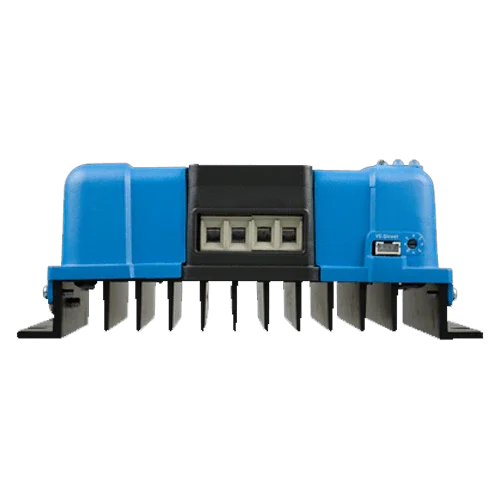

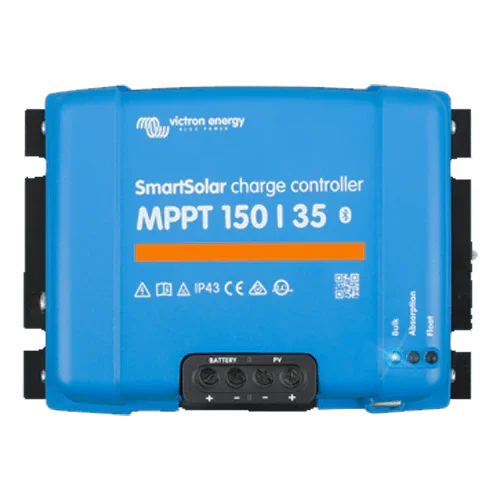

MPPT Charge Controller Victron SmartSolar 150/35 12/24/36/48V 35A Bluetooth

Modelo: SmartSolar 150/35

Sku: VICTREG022
Vendor: Victron

€270,07 EUR

€202,56 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Victron SmartSolar MPPT Charge Controller 150/35 12/24/36/48V 35A Bluetooth optimizes capture with ultra-fast MPPT and Max PV Voc 150 V. Bluetooth, VE.Direct, IP43, and BatteryLife to protect your battery.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The MPPT Charge Controller Victron SmartSolar 150/35 12/24/36/48V 35A Bluetooth is a professional controller designed to extract the maximum energy from your solar panels in 12, 24, 36, or 48 V installations. With integrated Bluetooth and VE.Direct port, it allows you to configure parameters, update firmware, and monitor production and history from the VictronConnect app. Its ultra-fast MPP tracking, together with an advanced algorithm capable of identifying the optimal point even with partial cloud cover, tangibly increases the daily available energy and protects the battery bank with intelligent functions.

Main Features

MPPT 150 V / 35 A: supports up to 150 V open circuit (145 V in operation) and delivers 35 A to the battery.
Admissible PV power: 500 W (12 V) / 1000 W (24 V) / 1500 W (36 V) / 2000 W (48 V) with safe automatic limitation.
Conversion efficiency up to 98% and low self-consumption: 20 mA (12 V), 15 mA (24 V), 10 mA (48 V).
Programmable multi-stage charging algorithm with BatteryLife, thermal compensation, and battery recovery from 0 V.
Bluetooth and VE.Direct connectivity for integration with GX equipment and monitors.
Comprehensive protections: overtemperature with power reduction, short circuit, reverse polarity, and PV reverse current.

Advantages or Benefits

More usable energy every day thanks to fast-response MPPT and optimal MPP detection with partial shading.
Longer battery life due to intelligent management, adjustable profiles, and BatteryLife function against deep discharges.
Simple commissioning and maintenance from your mobile: configuration, 46-day logs, and OTA updates.
Robust design with IP43 for electronics (IP22 at terminals) and reliable operation from -30 °C to +60 °C.

Purpose or Applications

Recommended for residential, camper, and marine systems of medium power, telecom, and small industrial installations requiring 35 A with higher voltage strings (up to 150 V), maintaining flexibility to operate at 12/24/36/48 V.

Technical Specifications

Battery voltage	12/24/36/48 V (auto; 36 V selectable by software)
Charge current	35 A
Admissible PV power	500 W (12 V) / 1000 W (24 V) / 1500 W (36 V) / 2000 W (48 V)
Max. PV Voc	150 V absolute (145 V at startup and operation)
Max. PV Isc	40 A
Max. efficiency	98%
Self-consumption	20 mA (12 V) / 15 mA (24 V) / 10 mA (48 V)
Communications	Integrated Bluetooth, VE.Direct
Protection rating	IP43 electronics / IP22 connection area
Operating temperature	-30 °C to +60 °C (nominal power up to 40 °C)
Terminals	16 mm² (AWG 6)
Dimensions	130 × 186 × 70 mm
Weight	1.25 kg
Standards	EN/IEC 62109-1, UL 1741, CSA C22.2

Compatibilities

Official accessories and systems: Smart Battery Sense (voltage/temperature via Bluetooth), SmartShunt and BMV-712 Smart monitors, Cerbo GX and GX family via VE.Direct, VE.Direct-USB cable, suitable DC protections and fuses. No internal URLs have been provided for linking.

The MPPT Charge Controller Victron SmartSolar 150/35 12/24/36/48V 35A Bluetooth is the safe choice to increase production, protect the battery, and control your installation with professional precision.
