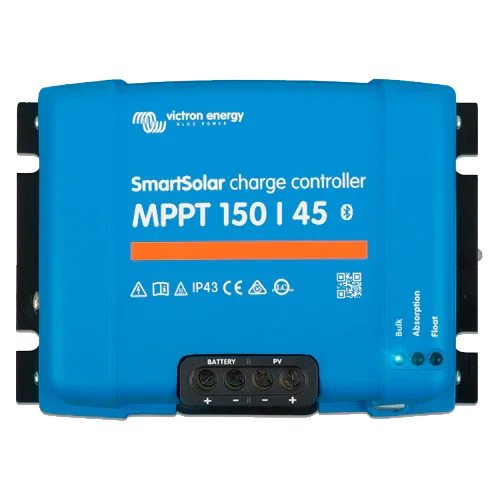

MPPT Charge Controller Victron SmartSolar 150/45 12/24/36/48V 45A Bluetooth
Modelo: SmartSolar 150/45- Sku: VICTREG023
- Vendor: Victron
Specifications
Product Description
The Victron SmartSolar MPPT Charge Controller 150/45 12/24/36/48V 45A Bluetooth is designed for installations that require higher charging current without sacrificing reliability or efficiency. It features an ultra-fast response MPPT algorithm that maximizes energy capture under changing irradiance and partial shading, while integrated Bluetooth and the VE.Direct port allow seamless integration with VictronConnect and GX devices for professional monitoring.
Main Features
- MPPT 150 V / 45 A: PV open-circuit voltage up to 150 V (145 V in operation) and nominal charging current of 45 A.
- Admissible PV power: 650 W (12 V) / 1300 W (24 V) / 1950 W (36 V) / 2600 W (48 V) with automatic protective limitation.
- Converter efficiency up to 98% and very low standby consumption.
- Flexible multi-stage charging algorithm, BatteryLife, thermal compensation, and battery recovery from 0 V.
- Bluetooth and VE.Direct connectivity for data logging, alarms, and integration with monitors and GX gateways.
- Protections: overtemperature with derating, short circuit, reverse polarity, and PV reverse current protection.
Advantages or Benefits
- Higher daily energy production and stability under variable irradiation conditions.
- Extends battery bank life by preventing deep discharges and adapting absorption/float voltages according to temperature.
- Configuration, 46-day history, and OTA updates from your mobile device, without additional equipment.
- Robust construction with IP43 for electronics (IP22 for terminals), suitable for demanding mobile and stationary applications.
Purpose or Applications
Ideal for high-consumption motorhomes, boats, off-grid residences, telecom cabins, and small commercial systems requiring 45 A with high-voltage strings (up to 150 V) and advanced control.
Technical Specifications
| Battery voltage | 12/24/36/48 V (auto; 36 V selectable by software) |
| Charging current | 45 A |
| Admissible PV power | 650 W (12 V) / 1300 W (24 V) / 1950 W (36 V) / 2600 W (48 V) |
| Max. PV Voc | 150 V absolute (145 V at startup and operation) |
| Max. PV Isc | 50 A |
| Max. efficiency | 98 % |
| Self-consumption | 20 mA (12 V) / 15 mA (24 V) / 10 mA (48 V) |
| Communications | Integrated Bluetooth, VE.Direct |
| Protection rating | IP43 electronics / IP22 connection area |
| Operating temperature | -30 °C to +60 °C (nominal power up to 40 °C) |
| Terminals | 16 mm² (AWG 6) |
| Dimensions | 130 × 186 × 70 mm |
| Weight | 1.25 kg |
| Standards | EN/IEC 62109-1, UL 1741, CSA C22.2 |
Compatibilities
Accessories and systems: Smart Battery Sense, BMV-712 Smart monitors and SmartShunt, Cerbo GX and GX family via VE.Direct, VE.Direct-USB cable, suitable DC protections. No internal URLs available for linking.
With the Victron SmartSolar MPPT Charge Controller 150/45 12/24/36/48V 45A Bluetooth you get power, control, and reliability to take your photovoltaic installation to a higher level of performance.
