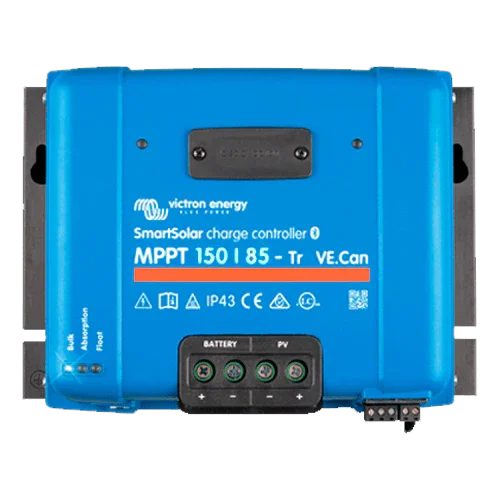

MPPT Charge Controller Victron SmartSolar 150/85-TR VE.Can 12/24/48V 85A Bluetooth
Modelo: SmartSolar 150/85-TR VE.Can- Sku: VICTREG029
- Vendor: Victron
Specifications
Product Description
The MPPT Charge Controller Victron SmartSolar 150/85-TR VE.Can 12/24/48V 85A Bluetooth is designed for installations with high-voltage strings and high current demand. It integrates Bluetooth for configuration and logging via VictronConnect and VE.Can communication to synchronize multiple controllers in 12/24/48 V systems (36 V selectable by software), ensuring centralized and professional control.
Main Features
- MPPT 150 V / 85 A: supports up to 150 V open circuit (145 V in operation) and delivers 85 A to the battery.
- Permissible PV power: 1200 W (12 V) / 2400 W (24 V) / 3600–3700 W (36 V) / 4900 W (48 V) with safe automatic limitation.
- Conversion efficiency up to 98%, very low self-consumption, and fanless operation.
- Multi-stage charging algorithm, BatteryLife, thermal compensation, and battery recovery from 0 V.
- Connectivity: VE.Can, VE.Direct, and Bluetooth; programmable relay and remote on/off input.
- Possibility to synchronize up to 25 controllers via VE.Can (or up to 10 via Bluetooth).
Advantages or Benefits
- Higher daily yield thanks to ultra-fast MPP tracking even with variable irradiance.
- Active battery bank protection with BatteryLife and adjustable profiles by battery type.
- Simple scalability to increase power without redoing the installation.
- Complete management from mobile: parameters, history, alarms, and OTA updates.
Purpose or Applications
Recommended for off-grid homes, self-consumption with batteries, marine, telecom, and light commercial projects requiring 85 A and strings up to 150 V with centralized control and monitoring.
Technical Specifications
| Battery voltage | 12/24/48 V automatic (36 V by software) |
| Charge current | 85 A |
| Permissible PV power | 1200 / 2400 / 3600–3700 / 4900 W (12/24/36/48 V) |
| Max PV Voc | 150 V absolute (145 V at start/operation) |
| Max efficiency | Up to 98% |
| Communications | VE.Can, VE.Direct, Bluetooth |
| Programmable relay | 240 VAC 4 A / 35–60 VDC 4–1 A |
| Parallelization | Up to 25 via VE.Can / 10 via Bluetooth |
| Protection rating | IP43 electronics / IP22 connections |
| Dimensions (TR) | 185 × 250 × 95 mm |
| Weight | ≈ 3 kg |
| Operating temperature | −30 °C to +60 °C (derating > 40 °C) |
Compatibilities
Accessories: plug-in LCD display, Smart Battery Sense, SmartShunt / BMV-712 Smart, Cerbo GX and GX family (VE.Can/VE.Direct), VE.Direct-USB cable, suitable DC fuses and protections.
The MPPT Charge Controller Victron SmartSolar 150/85-TR VE.Can 12/24/48V 85A Bluetooth combines power, scalability, and intelligent control to maximize the performance of your photovoltaic installation.
