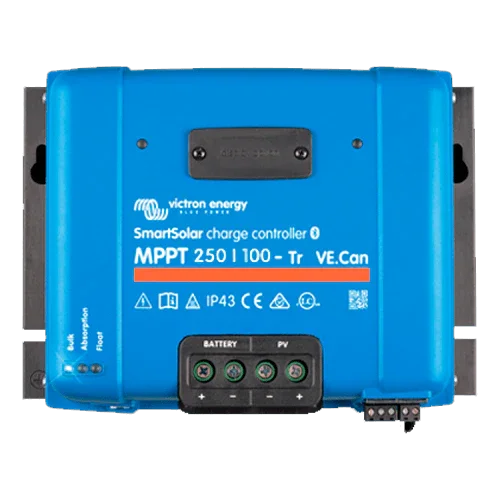

MPPT Charge Controller Victron SmartSolar 250/100-TR VE.Can 12/24/48V 100A Bluetooth
Modelo: SmartSolar 250/100-TR VE.Can- Sku: VICTREG040
- Vendor: Victron
Specifications
Product Description
The MPPT Charge Controller Victron SmartSolar 250/100-TR VE.Can 12/24/48V 100A Bluetooth is the high-current option for systems that require long strings and centralized control. Its ultra-fast response MPPT maximizes capture with changing irradiance, while VE.Can allows synchronization of multiple controllers and management from a GX device. With Bluetooth and VE.Direct, configuration, logging, and updating are simple via VictronConnect.
Main Features
- MPPT 250 V / 100 A with advanced MPP detection and safe automatic limitation.
- Operates at 12/24/48 V (36 V selectable by software) with automatic selection.
- Admissible PV power approx.: 1450 W (12 V) / 2900 W (24 V) / 4350 W (36 V) / 5800 W (48 V).
- Conversion efficiency up to 99% and very low self-consumption; fanless operation.
- Multi-stage charging algorithm, BatteryLife, thermal compensation, and recovery from 0 V.
- Connectivity VE.Can, VE.Direct, and Bluetooth; programmable relay and remote on/off.
Advantages or Benefits
- Higher daily yield thanks to ultra-fast MPP tracking, even with partial shading.
- True scalability: synchronize up to 25 controllers via VE.Can to increase power without reworking the system.
- Protects and extends the life of the battery bank with BatteryLife and charging profiles for lead-acid and lithium.
- Total control from mobile or GX systems with history, alarms, and OTA updates.
Purpose or Applications
High-demand off-grid homes, self-consumption with batteries, professional marine, telecom, and small commercial/industrial installations requiring 100 A and strings up to 250 V with centralized management.
Technical Specifications
| Battery voltage | 12/24/48 V auto (36 V by software) |
| Charge current | 100 A |
| Admissible PV power | ≈1450 / 2900 / 4350 / 5800 W (12/24/36/48 V) |
| Max PV Voc | 250 V absolute (245 V at start/operation) |
| Max PV Isc | ≈60 A |
| Efficiency | Up to 99% |
| Communications | VE.Can, VE.Direct, Bluetooth |
| Programmable relay | 240 VAC 4 A / 35–60 VDC 4–1 A |
| Protection rating | IP43 electronics / IP22 connections |
| Dimensions (TR) | 216×295×103 mm |
| Weight | ≈3 kg |
| Operating temperature | −30 °C to +60 °C (derating > 40 °C) |
Compatibilities
Accessories: plug-in SmartSolar display, Smart Battery Sense, SmartShunt/BMV-712 Smart, Cerbo GX and GX family (VE.Can/VE.Direct), VE.Direct-USB cable, and suitable DC protections.
The MPPT Charge Controller Victron SmartSolar 250/100-TR VE.Can 12/24/48V 100A Bluetooth combines high PV voltage, high current, and intelligent control to bring your installation to maximum performance.
