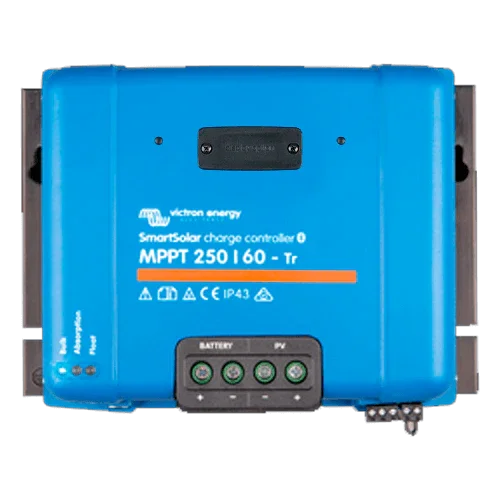

MPPT Charge Controller Victron SmartSolar 250/60-TR 12/24/48V 60A Bluetooth
Modelo: SmartSolar 250/60-TR- Sku: VICTREG033
- Vendor: Victron
Specifications
Product Description
The Victron SmartSolar MPPT Charge Controller 250/60-TR 12/24/48V 60A Bluetooth is designed for installations that require working with photovoltaic strings of higher voltage and a charging current of 60 A at 12/24/48 V (36 V via software). Its ultra-fast MPPT algorithm maximizes captured energy even with variable irradiance, while the integrated Bluetooth and VE.Direct port allow precise configuration, monitoring, and updating of the device from the VictronConnect app or a GX system.
Main Features
- MPPT 250 V / 60 A with advanced maximum power point detection under partial cloud cover.
- Admissible PV power: 860 W (12 V) / 1,720 W (24 V) / 2,580 W (36 V) / 3,440 W (48 V).
- Outstanding efficiency (up to 99%) and very low self-consumption (< 35 mA at 12 V / 20 mA at 48 V).
- Programmable multi-stage charging algorithm, BatteryLife, thermal compensation, and battery recovery from 0 V.
- Bluetooth and VE.Direct connectivity; programmable relay and remote on/off input.
- Comprehensive electronic protection: overtemperature with derating, short circuit, reverse polarity, and PV reverse current.
Advantages or Benefits
- More usable energy each day compared to PWM or slow MPPT thanks to ultra-fast MPP tracking response.
- Longer battery life: prevents deep discharges and adapts charging voltages by temperature.
- Total control from a mobile device or GX equipment with history, alarms, and OTA updates.
- Robust format and IP43 for electronics (IP22 for connections) without the need for a fan.
Purpose or Applications
Ideal for off-grid homes, self-consumption with batteries, marine, high-consumption campers, telecom, and professional applications that require 60 A charging and strings up to 250 V with advanced management.
Technical Specifications
| Battery voltage | 12/24/48 V automatic (36 V via software) |
| Charging current | 60 A |
| Admissible PV power | 860 / 1,720 / 2,580 / 3,440 W (12/24/36/48 V) |
| Max. PV Voc | 250 V absolute (245 V at startup/operation) |
| Max. PV Isc | 35 A |
| Efficiency | Up to 99% |
| Self-consumption | < 35 mA (12 V) / 20 mA (48 V) |
| Programmable relay | 240 VAC 4 A / 35–60 VDC 4–1 A |
| Communications | Bluetooth, VE.Direct; remote on/off |
| Protection rating | IP43 electronics / IP22 connections |
| Dimensions and weight (TR) | 185 × 250 × 95 mm; 3 kg |
| Operating temperature | −30 °C to +60 °C (derating > 40 °C) |
Compatibilities
Accessories and ecosystem: pluggable LCD display, Smart Battery Sense, SmartShunt / BMV-712 Smart, Cerbo GX and GX family (via VE.Direct), VE.Direct-USB cable, suitable DC fuses and protections.
The Victron SmartSolar MPPT Charge Controller 250/60-TR 12/24/48V 60A Bluetooth combines high PV voltage, efficiency, and intelligent control to maximize the performance of your installation.
