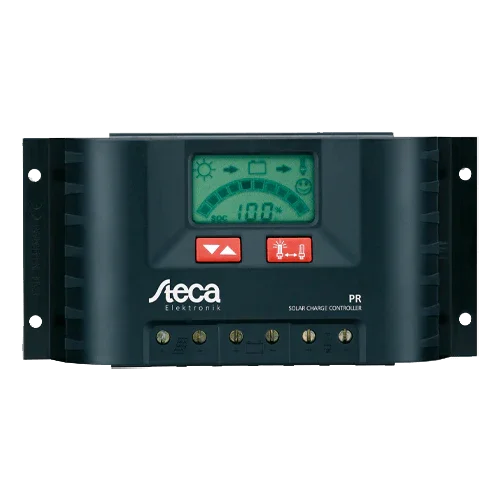

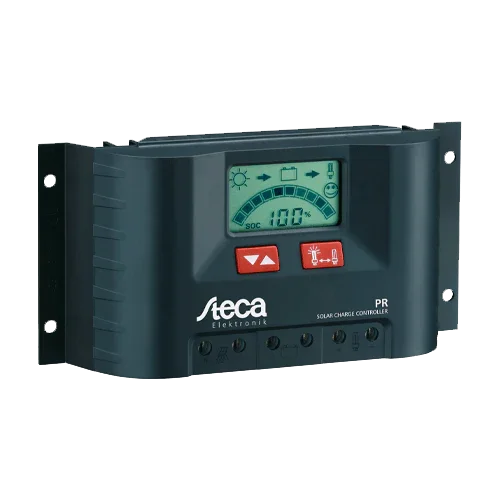

PWM Regulator Steca PR1515 12/24V with Display

Modelo: PR1515

Sku: STECREG006
Vendor: Steca

€146,91 EUR

€110,18 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Steca PR1515 PWM Regulator 12/24V with Display increases the capacity to 15A while maintaining LCD with SOC AtonIC, multi-stage PWM charging, data logger and complete protections. Professional and simple control.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Steca PR1515 12/24V PWM Controller with Display is designed for off-grid installations that require higher charging current without sacrificing detailed visual control. It uses shunt topology with MOSFETs and multi-stage PWM (bulk, boost, float, and monthly equalization), with Steca AtonIC SOC determination for precise battery management. Its graphical LCD display shows symbols and numerical values for voltage, current, and energy; the integrated energy logger allows performance analysis and can be reset by the user. Button programming, dusk/dawn functions, and automatic load disconnection/reconnection simplify daily operation.

Main Features

Nominal current: 15 A in 12/24 V systems with automatic detection.
PWM algorithm with temperature compensation and monthly equalization for maintenance.
Graphical LCD with AtonIC SOC, digital reading of V/A/Wh, self-diagnostic messages, and guided menu.
Data logger (resettable accumulated energy), manual load switch, and late/night/dawn modes.
Comprehensive electronic protections and automatic fuse: overload, deep discharge, reverse polarity, short circuit, over/undervoltage, overtemperature, and night return.

Advantages or Benefits

More usable power (15 A) for systems with more panels or higher consumption without increased complexity.
Prolonged battery life thanks to precise voltages, thermal compensation, and controlled equalization strategy.
Clear monitoring on the device itself: actual charge status, daily energy, and alarms.
Quick installation: 12/24 V detection, generous terminals, and intuitive LCD menus.
Proven reliability with automatic load reconnection and factory protection package.

Purpose or Applications

Recommended for off-grid homes, telecom, video surveillance, outdoor lighting, caravans, and boats with medium consumption. Ideal when detailed local control and energy logging are required without adding external devices.

Technical Specifications

System voltage	12/24 V (auto)
Charge/Load current	15 A / 15 A
Permissible PV Voc	< 47 V
End of charge / Boost / Equalization	13.9 V / 14.4 V / 14.7 V (×2 at 24 V)
Disconnection by SOC (LVD)	<30% SOC (≈11.1 V; 22.2 V at 24 V)
Reconnection (LVR)	>50% SOC (≈12.6 V; 25.2 V at 24 V)
Self-consumption	≈12.5 mA
Display / operation	Graphical LCD; buttons; manual load switch
Functions	Late/night/dawn modes; self-diagnosis; energy counter
Connections	Terminals 16 mm² (stranded) / 25 mm² (solid)
Grounding	Negative of one terminal or positive of several, possible
Degree of protection	IP31
Dimensions / weight	187×96×44 mm / ≈350 g
Ambient temperature	−10 °C…+50 °C
Certifications	CE, RoHS; manufactured in the EU under ISO 9001/14001

Compatibilities

Accessories: Steca PA TS10 external temperature sensor; optional alarm contact. Note: do not connect inverters to the “Load” output; they must be connected directly to the battery with appropriate protections.

Steca PR1515 12/24V PWM Controller with Display combines capacity, visual control, and safety to enhance the performance of your off-grid photovoltaic system.
