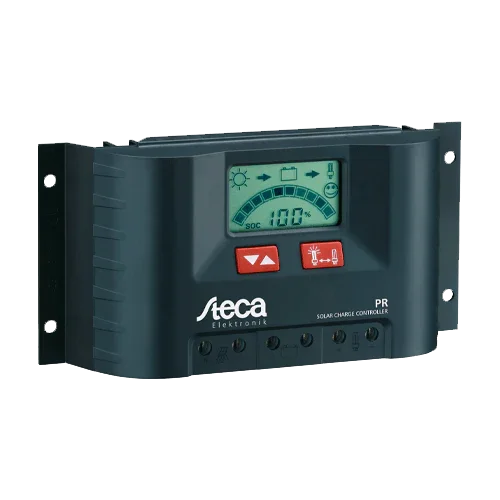

PWM Regulator Steca PR3030 12/24V with Display

Modelo: PR3030

Sku: STECREG008
Vendor: Steca

€181,12 EUR

€135,84 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Steca PR3030 PWM Regulator 12/24V with Display provides 30 A capacity with graphic LCD, SOC AtonIC, data logger, and multi-stage PWM charging with equalization. IP31, complete protections, and robust operation at 12/24 V.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Steca PR3030 12/24V PWM Controller with Display is the highest current model in the PR series, designed for demanding off-grid installations that require 30 A with advanced local control. It maintains the Steca philosophy: precise battery management through multi-stage PWM with monthly equalization, temperature compensation, and shunt topology with MOSFETs. The graphical LCD display shows the Steca AtonIC SOC, real-time voltage/current values, and accumulated energy thanks to the integrated data logger. Its package of electronic protections and automatic fuse provide safety against abnormal situations, while 12/24 V detection and automatic reconnection simplify daily use.

Main Features

Nominal current: 30 A at 12/24 V (automatic detection).
PWM charging algorithm with boost, float, and monthly equalization; temperature compensation.
Graphical LCD with AtonIC SOC, digital reading of V/A/Wh, and button-operated menus.
Resettable energy log and self-diagnosis with clear fault messages.
Functions: dusk/night/dawn modes, manual load switch, automatic disconnection/reconnection by SOC.
Total protections: overload, deep discharge, reverse polarity, short circuit, over/undervoltage, overtemperature, and night return.

Advantages or Benefits

More usable power for PV arrays and higher consumption, ideal for off-grid homes and small businesses.
Optimized battery health with precise voltages and an equalization routine that minimizes sulfation.
Local visualization and logging of parameters and energy without additional equipment.
Service continuity with automatic reconnection and comprehensive protection against electrical events.
Professional installation thanks to large-section terminals and intuitive LCD menus.

Purpose or Applications

Recommended for off-grid homes with medium-high consumption, outdoor lighting, site cabins, telecommunications, video surveillance, caravans, and boats with multiple DC circuits. An excellent option when 30 A with visual control and long-term reliability are required.

Technical Specifications

System voltage	12 V / 24 V (automatic)
Charge / load current	30 A / 30 A
Charging technology	Multi-stage PWM with monthly equalization
Permissible PV Voc	< 47 V
End of charge / Boost / Equalization	13.9 V / 14.4 V / 14.7 V (×2 at 24 V)
LVD disconnection / LVR reconnection	≈11.1–11.6 V / ≈12.4–12.7 V (×2 at 24 V)
Temperature compensation	Yes (internal sensor; external optional)
Display and interface	Graphical LCD with AtonIC SOC; buttons; manual load switch
Energy log	Resettable Wh counter
Self-consumption	≈12.5 mA
Connections	Terminals up to 16 mm² (stranded) / 25 mm² (solid)
Protection rating	IP31
Ambient temperature	−10 °C to +50 °C
Dimensions / weight	187×96×44 mm / ≈350 g
Certifications	CE, RoHS (EU manufacturing)

Compatibilities

Accessories: Steca PA TS10 external temperature sensor and optional alarm contact. Note: do not connect inverters to the “Load” output; they must be powered from the battery with appropriate protections.

Steca PR3030 12/24V PWM Controller with Display provides professional-level capacity, control, and safety for your photovoltaic installation.
