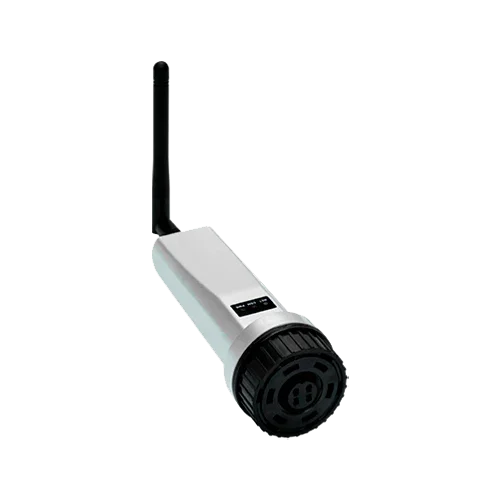

Solis S3-WiFi-ST WiFi Stick for solar monitoring

Product description

The Solis S3-WiFi-ST WiFi Stick for solar monitoring is a compact and efficient device designed to send photovoltaic system production and status data to the SolisCloud platform. Through RS485 communication and 2.4 GHz WiFi connectivity, it enables remote monitoring of up to 10 Solis inverters, with plug-and-play installation and IP65 protection rating, ideal for outdoor use.

Main features

• 2.4 GHz WiFi wireless communication (802.11 b/g/n)
• RS485 daisy-chain connection for up to 10 Solis inverters
• IP65 protection for outdoor use
• LED status indicators and physical reset button
• Configuration via mobile app or web browser
• Powered by USB (5 VDC) and low consumption (<5 W)

Advantages or benefits

• Allows real-time monitoring from SolisCloud
• Easy integration into existing systems thanks to its plug-and-play design
• Ideal for homes and small businesses that do not require export control
• Avoids the use of LAN cabling, ideal for locations without physical network access
• Enables performance analysis, alarms, and automatic reports

Purpose or applications

Designed for solar installations with Solis inverters, especially in small to medium-sized residential or commercial environments. Allows remote visualization of energy data and alarms without the need for additional wiring or export control.

Technical specifications

Compatibilities

This product is compatible with: Solis S6-GR1P1K-M, Solis S6-GR1P6K, Solis S5-GC60K, Solis S5-EH1P5K-L, and other Solis inverters with RS485 port.

Solis S3-WiFi-ST WiFi Stick for solar monitoring is a lightweight, reliable, and cost-effective solution to keep your photovoltaic system always connected. Monitor production, performance, and alarms from anywhere with SolisCloud.
