Solis S5-EH1P6K-L Hybrid Inverter Single-phase 6kW 48V

Modelo: S5-EH1P6K-L

Sku: SOLIINV012
Vendor: Solis

€1.378,22 EUR

€1.102,57 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Solis S5-EH1P6K-L Hybrid Inverter Single-phase 6kW 48V with 2 MPPT of 15 A and 5 kW backup <20 ms. IP65, AFCI and intelligent EMS. Manages 48 V batteries (lithium/lead) with charge/discharge up to 5 kW and LCD monitoring.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Solis S5-EH1P6K-L Hybrid Inverter Single-phase 6kW 48V is the highest power option in the S5 low voltage series. Designed for homes with high consumption or small businesses, it combines dual 15 A MPPT, automatic 5 kW backup in less than 20 ms, and an intelligent EMS that optimizes charging/discharging of 48 V batteries (lithium-ion or lead-acid). Its fanless design with IP65 protection ensures quiet and durable outdoor operation, while AFCI protection and a comprehensive safety package enhance system reliability.

Main Features

Grid power: 6 kW single-phase (6.6 kVA max.), power factor >0.99.
5 kW backup with <20 ms switching for critical loads (router, lighting, refrigerator, small motors).
2 MPPT / 2 strings, 15 A per input, admissible Isc 22.5 A; MPPT range 90–520 V.
Recommended generator 12 kW; usable PV power up to 8 kW.
Battery charge/discharge up to 5 kW (≈100 A) at 48 V, with CAN communication and 24/7 EMS control.
Max. efficiency >97.1 %; THDi <2 %; natural convection cooling.

Advantages or Benefits

Greater consumption coverage: 6 kW to grid and 5 kW backup for heat pumps, electric cookers, or simultaneous loads.
Compatibility with modern panels: 15 A per MPPT and Isc 22.5 A for high-current TOPCon/HJT modules.
Savings and control: EMS prioritizes self-consumption, schedules charging by time slots, and allows export limitation according to regulations.

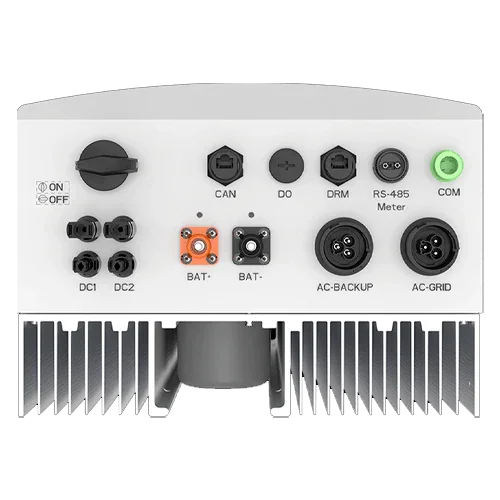

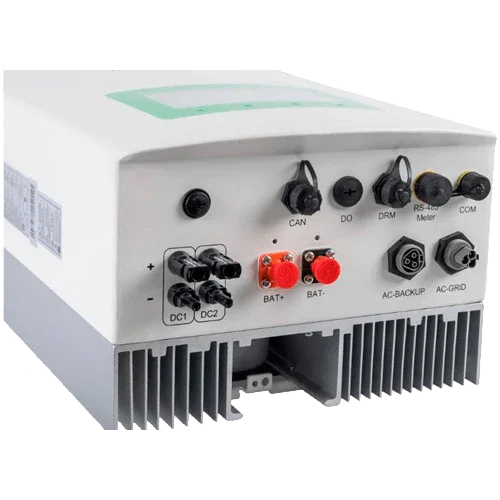

Agile installation: MC4 connectors and quick AC plug, 7” color LCD screen, and RS485 communication (Wi-Fi/GPRS optional).
Enhanced safety: AFCI, anti-islanding, SPD, reverse polarity protection, and continuous grid monitoring.

Purpose or Applications

Ideal for single-phase residential self-consumption with high demand and backup needs, homes with heat pump/light EV charging, small businesses, and expansions seeking maximum production and service continuity during micro-outages.

Technical Specifications

Nominal grid power	6 kW (6.6 kVA max.)
Backup output	5 kW; switching <20 ms; 7 kVA 10 s
Phases / voltage	1/N/PE, 220/230 V; 50/60 Hz
Nominal / max. grid output current	27.3/26.1 A (nominal) • 30 A (max.)
MPPT / strings	2 / 2
U_DC max. / MPPT range	600 V / 90–520 V (start 120 V)
I_in max. / I_sc per MPPT	15 A / 22.5 A
Recommended / usable PV	12 kW / 8 kW
Battery	48 V (42–58 V), lithium or lead-acid, 50–2000 Ah, CAN
Battery charge/discharge	5 kW (≈100 A)
Max. efficiency / EU	>97.1 % / >96.5 %
Communication	RS485; optional Wi-Fi / GPRS; 7” LCD
Protections	AFCI, anti-islanding, DC reverse polarity, overcurrent/overvoltage, THDi <2 %
Protection rating	IP65; natural convection; altitude ≤3000 m
Dimensions / weight	≈333 × 505 × 249 mm / ≈18–19 kg
Operating temperature	−25 °C … +60 °C
Standards	CE; IEC/EN 62109-1/-2; IEC 62116; UNE 206006/206007-1, among others

Compatibilities

Compatible with 48 V batteries with CAN communication (lithium from approved brands) and lead-acid banks at 42–58 V. Integrable with meters/relays via RS485 and Wi-Fi/GPRS connectivity modules for remote monitoring. Supports scheduled self-consumption modes and export limitation via EMS.

The Solis S5-EH1P6K-L Hybrid Inverter Single-phase 6kW 48V offers power, fast backup, and advanced energy management for robust, efficient, and safe residential self-consumption.
