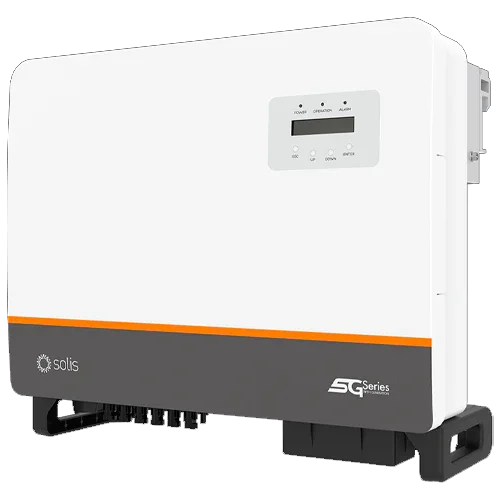

Solis S5-GC30K Three-Phase 30kW On-Grid Solar Inverter

Modelo: S5-GC30K

Sku: SOLIINV021
Vendor: Solis

€2.014,13 EUR

€1.611,30 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Solis S5-GC30K Three-Phase 30kW On-Grid Solar Inverter adds power with 3 MPPT and 98.6% efficiency. IP66, AFCI, string monitoring, I-V scanning, and up to 150% DC/AC for large commercial rooftops.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Solis S5-GC30K Three-Phase 30kW On-Grid Solar Inverter is designed for commercial deployments seeking maximum energy and advanced control. With 3 MPPT and 6 total inputs, it manages different orientations and irradiance levels while maintaining a 98.6% efficiency (EU 98.2%). It integrates string monitoring and I-V curve analysis for rapid diagnostics, supports nighttime PID recovery (optional), and allows export control. The IP66 enclosure and intelligent redundant fans ensure safe and stable operation in demanding outdoor environments.

Main Features

3 MPPT / 6 strings, ideal for two or three roof sections with different behaviors.
Max. efficiency 98.6% and low distortion (THDi < 3%) for superior power quality.
MPPT range 200–1000 V, startup at 180 V, U_DC max. 1100 V for long strings.
16 A per string (I_sc 20 A) and 32 A per MPPT: compatible with TOPCon/HJT modules.
DC/AC up to 150%, higher plant factor and annual production.
RS485 communications and Wi-Fi/GPRS option with SolisCloud for remote O&M.

Advantages or Benefits

More energy due to its high efficiency and the possibility to oversize the photovoltaic field.
Intelligent O&M with I-V scanning and string alarms that reduce diagnostic times.
Flexible design for complex rooftops without compromising performance due to high currents.
Advanced safety: AFCI, SPD Type II on DC/AC, anti-islanding, and thermal control.

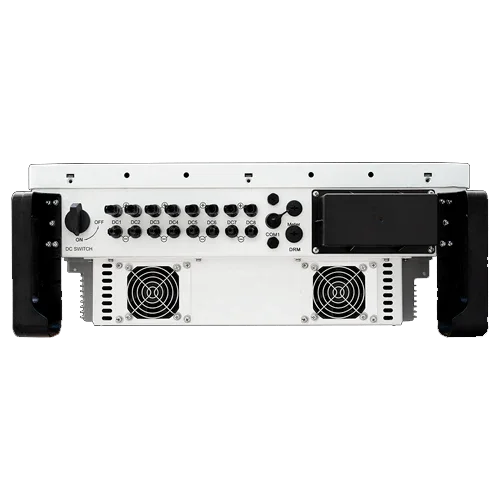

Professional installation with MC4 on DC, OT terminal on AC, and LCD for commissioning.

Purpose or Applications

Focused on three-phase self-consumption of 30 kW in warehouses, hotels, logistics, agro-industry, and public buildings. Perfect when export limitation or precise monitoring of a large number of modules by string is required.

Technical Specifications

Nominal output power	30 kW
Apparent power / max. output	33 kVA / 33 kW
Grid	3/N/PE, 220/380 V or 230/400 V; 50/60 Hz
Nominal / max. output current	45.6/43.3 A (nominal) • 50.2 A (max.)
MPPT / Strings	3 / 6
U_DC max. / MPPT range / Startup	1100 V / 200–1000 V / 180 V
I_MPPT max. / I_string max.	32 A per MPPT / 16 A per string (I_sc 20 A)
Max. efficiency / EU	98.6% / 98.2%
Protections	AFCI, SPD Type II DC/AC, anti-islanding, overcurrent, overvoltage (requires activation)
Communication	RS485; optional: Wi-Fi / GPRS; SolisCloud; LCD
IP / Cooling	IP66 / Intelligent redundant fan
Dimensions / weight	647×629×252 mm / 38.2 kg
Temperature / Altitude	−25…+60 °C / ≤4000 m

Compatibilities

Works with Solis Wi-Fi/GPRS connectivity modules, meters, and relays via RS485, as well as export control solutions. Accepts high-power photovoltaic modules within electrical limits.

The Solis S5-GC30K Three-Phase 30kW On-Grid Solar Inverter provides power, advanced control, and maximum reliability for large commercial projects.
