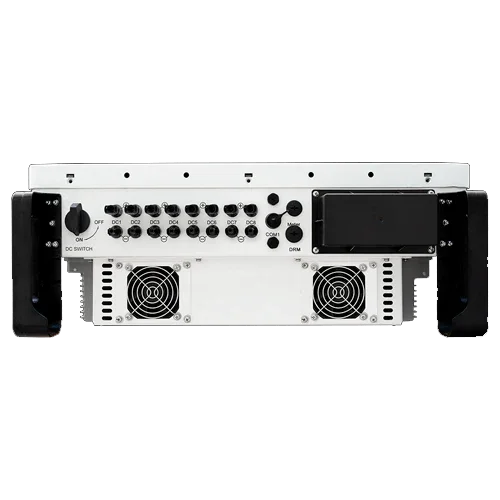

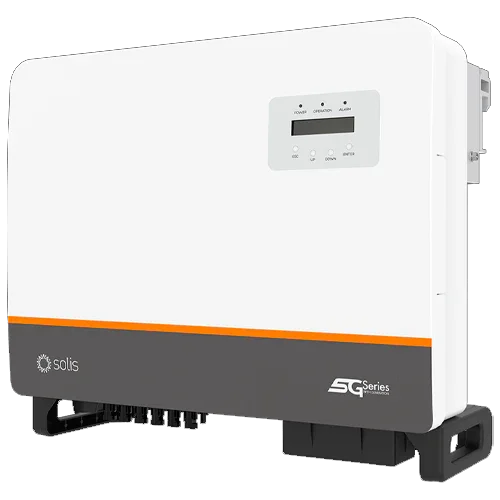

Solis S5-GC50K 50kW three-phase on-grid inverter
Modelo: S5-GC50K- Sku: SOLIINV025
- Vendor: Solis
Specifications
Product Description
The Solis S5-GC50K 50kW three-phase on-grid inverter is a high-performance industrial string inverter for large commercial rooftops. Its architecture with 5 MPPT (10 inputs) allows the generator to be divided into several subfields with different orientations, reducing mismatch losses and maximizing annual production. With a maximum efficiency of 98.7% (EU 98.3%), IP66 C5 enclosure, and intelligent redundant ventilation, it ensures reliability outdoors and stable operation in demanding climates. It incorporates AFCI, SPD Type II on DC/AC, and thermal monitoring, as well as advanced features such as string monitoring, I-V curve scanning, nighttime SVG, and export control for zero feed-in.
Main Features
- Nominal power 50 kW (55 kVA/55 kW max.) at 3/N/PE 220/380–230/400 V, 50/60 Hz.
- 5 MPPT / 10 strings for complex designs with multiple roof sections or obstacles.
- MPPT range 180–1000 V (start-up 195 V), UDC max. 1100 V; supports long strings.
- Current per string up to 16 A; per MPPT 32 A (Isc per MPPT 40 A).
- 98.7% efficiency, THDi < 3% and PF > 0.99 (0.8 cap…0.8 ind).
- Advanced O&M: string monitoring, I-V scanning, remote update and control via SolisCloud.
Advantages or Benefits
- Higher annual energy with 5 MPPT and possibility of 150%+ DC/AC to improve plant factor.
- Predictive diagnostics per string that accelerates detection of soiling, PID, or faults.
- Compatibility with high-current TOPCon/HJT modules without throttling.
- Outdoor robustness: IP66 with C5 anti-corrosion protection and redundant fans.
- Industrial-grade electrical safety: AFCI, SPD II DC/AC, anti-islanding, and comprehensive protections.
Purpose or Applications
Three-phase self-consumption of 50 kW in warehouses, supermarkets, agro-industry, solar car parks, and tertiary buildings, with or without feed-in limitation. Ideal when several PV fields with different behavior are required.
Technical Specifications
| Nominal / max. AC power | 50 kW / 55 kW • 55 kVA |
| Grid | 3/N/PE, 220/380–230/400 V • 50/60 Hz |
| Nominal / max. output current | 76.0/72.2 A (380/400 V) • 83.6 A max. |
| MPPT / strings | 5 / 10 |
| UDC max. / MPPT range / Start-up | 1100 V / 180–1000 V / 195 V |
| I per MPPT / Isc per MPPT | 5×32 A / 5×40 A |
| Current per string | up to 16 A |
| Max. / EU efficiency | 98.7% / 98.3% |
| Communications | RS485, USB; optional Wi-Fi/GPRS; SolisCloud; capacitive touch LCD |
| Functions | Nighttime SVG, export control, PID recovery (optional), Y connectors on DC |
| Protections | AFCI, SPD II DC/AC, anti-islanding, overcurrent, overvoltage, temperature |
| IP / cooling | IP66 C5 / intelligent redundant fan |
| Dimensions / weight | 691×578×338 mm / 53.7 kg |
| Operating temp. / altitude | −25…+60 °C / ≤ 4000 m • Humidity 0–100% |
Compatibilities
Supports meters/relays via RS485, Wi-Fi/GPRS modules, and export managers. Compatible with high-power PV modules within electrical limits.
The Solis S5-GC50K 50kW three-phase on-grid inverter combines 5 MPPT, advanced O&M, and IP66 C5 for demanding commercial projects.
